Walthers Cornerstone HO Scale Ore Dock Kit - 933-3065

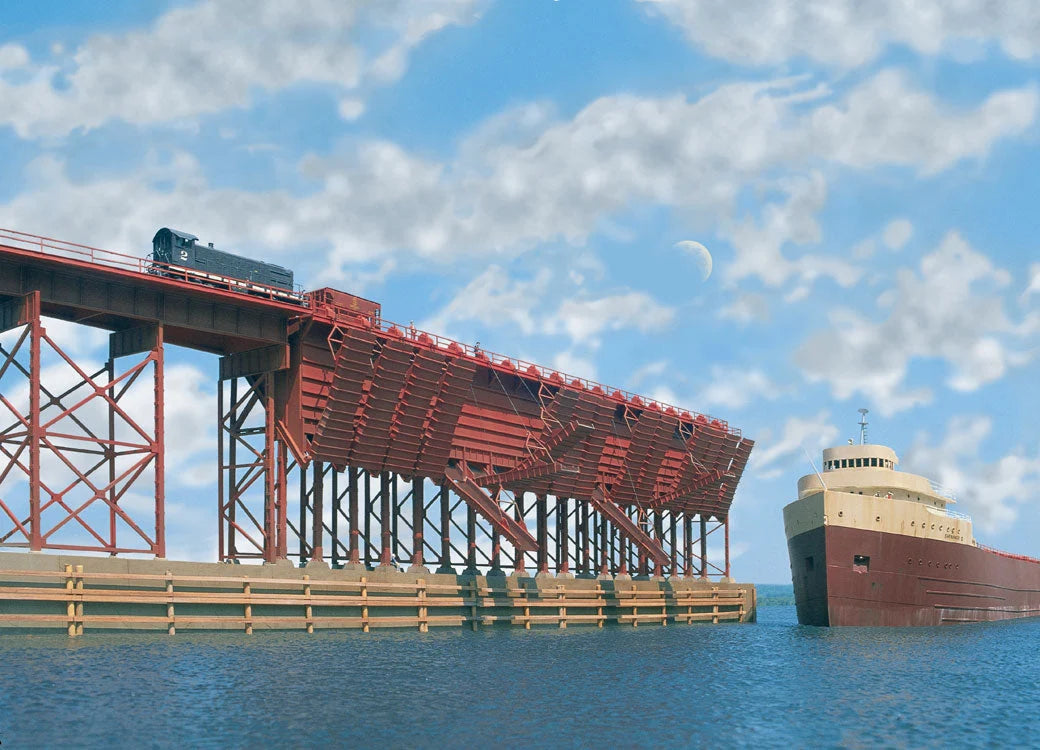

Walthers Cornerstone HO Scale Ore Dock Kit 933-3065 recreates one of the most impressive industrial structures found along the Great Lakes: the massive elevated railroad ore docks used to transfer iron ore from railroad cars into lake freighters. Designed for HO scale model railroads, this detailed plastic structure kit provides a realistic centerpiece for waterfront layouts, steel industry scenes, iron ore railroads, and busy industrial ports.

The completed model measures approximately 48-1/2 x 5 x 10 inches (123.1 x 12.5 x 25 cm), creating a substantial structure with a narrow footprint that works especially well along a layout backdrop. The standard kit builds a two-track, single-sided ore dock with 18 loading pockets, elevated railroad approaches, detailed structural components, and discharge chutes that can be assembled in raised or lowered positions.

Inspired by the enormous ore-loading docks once found throughout the Great Lakes region, this kit captures the relationship between mining railroads, lake shipping, and steel production. Short ore cars delivered iron ore to the elevated tracks, where their loads were emptied into storage pockets. The ore was then released through gravity-fed chutes into the holds of waiting ships.

The modular construction also allows modelers to combine multiple kits, sold separately, to create longer docks or full-width installations with additional tracks and loading pockets. Whether you're building a steam-era iron ore railroad, a diesel-powered ore terminal, or a large industrial waterfront, the Walthers Cornerstone Ore Dock offers exceptional opportunities for scenery and railroad operations.

Explore HO Scale Walthers Cornerstone structures for additional railroad buildings and industrial facilities that complement this impressive waterfront model.

Recreate a Great Lakes Iron Ore Loading Dock

Iron ore shipping played a major role in the growth of North America's steel industry. Large quantities of ore were mined in the Lake Superior region and transported by railroad to waterfront terminals, where the material was loaded aboard lake freighters for shipment to steelmaking centers.

As steel production expanded, railroads and steel companies constructed increasingly large ore docks to handle the volume of material required by blast furnaces. These elevated structures allowed trains to unload ore into storage pockets above the waterline.

When a lake freighter arrived, workers opened the appropriate discharge chutes, allowing ore to flow into the ship's cargo holds.

The Walthers Cornerstone Ore Dock recreates this distinctive transportation system with an elevated railroad deck, multiple storage pockets, and detailed loading chutes.

For a steam-era layout, the dock can serve trains of short iron ore cars hauled by heavy steam locomotives. For a transitional-era railroad, it can accommodate the appearance of both steam and diesel-powered ore movements. For a diesel-era scene, it can represent an established terminal serving a large steel industry.

Browse Walthers Cornerstone heavy industry structures for additional models that help connect iron ore transportation with steel production.

Ore Dock Kit Features and Dimensions

The Walthers Cornerstone HO Scale Ore Dock Kit includes the following manufacturer-confirmed features:

• Massive Great Lakes ore dock: Recreates an elevated railroad loading facility used to transfer iron ore into lake freighters.
• Two-track upper deck: Provides space for two parallel tracks used by ore trains.
• 18 loading pockets: The standard single-sided configuration includes 18 ore storage and discharge pockets.
• Capacity for short ore cars: Each track can accommodate up to nine standard 24-foot prototype ore cars.
• Detailed discharge chutes: Can be assembled in raised or lowered positions to represent different loading conditions.
• Modular dock construction: Three main dock modules combine to create the standard structure.
• Expandable design: Additional kits can be combined to create longer docks or a full-width four-track facility.
• Elevated railroad approaches: Help connect the upper dock tracks with the surrounding layout.
• Left- or right-hand approach options: Mirror-image components provide installation flexibility.
• Compatible bridge-system approaches: Designed to work with appropriate Walthers Cornerstone Engineered Bridge System components.
• Narrow scenic footprint: Suitable for installation against a backdrop or as a scenic view block.
• Decal signs: Included for additional railroad and industrial detailing.
• Molded in two colors: Provides a starting point for assembly and finishing.
• Styrene plastic construction: Suitable for painting, weathering, and customization.

Finished model dimensions: Approximately 48-1/2 x 5 x 10 inches (123.1 x 12.5 x 25 cm).

Scale: HO Scale, 1:87.

Product type: Great Lakes iron ore loading dock plastic structure kit.

Standard configuration: Single-sided ore dock with two upper railroad tracks.

Loading pockets: 18.

Ore car capacity: Up to nine standard 24-foot ore cars per track.

Approach configuration: Left- or right-hand installation.

Manufacturer item number: 933-3065.

The manufacturer's product title also lists a 48-1/2 x 5-inch footprint. The approximately 10-inch overall height comes from its detailed product specifications. Additional space is required for railroad approaches, ships, water scenery, and any expanded dock configuration.

Model Two Tracks of Iron Ore Railroad Operations

The standard Walthers Cornerstone Ore Dock includes provisions for two railroad tracks across the elevated structure.

Prototype ore docks used these tracks to position loaded ore cars above the storage pockets. The ore was discharged from the cars into the dock, where it could be held until a ship was ready for loading.

Each track on the standard model can accommodate up to nine short, 24-foot prototype ore cars.

For an HO scale operating railroad, this provides an excellent destination for dedicated ore trains. Loaded cars can arrive at the dock, be positioned along the unloading tracks, and later depart as empties.

For a steam-era railroad, a heavy switcher can handle the dock movements. For a diesel-era operation, a road-switcher or larger diesel locomotive can represent the power assigned to ore dock service.

The tracks and rolling stock should be selected to match the railroad and period being modeled.

Understand the 18 Ore Loading Pockets

Ore docks were designed to store and distribute large quantities of material efficiently. Their elevated construction allowed ore to move from railroad cars into storage pockets without requiring repeated mechanical handling.

The standard Walthers Cornerstone Ore Dock features 18 pockets along one side of the structure.

For a waterfront scene, these pockets create the recognizable repeating industrial appearance of a Great Lakes ore dock.

For a model railroad operating session, they help explain how arriving ore trains supply the shipping terminal.

For a steel industry layout, the dock represents the transfer point between the mining railroad and the vessels carrying ore toward blast furnaces.

Modelers can use the loading pockets as a visual basis for arranging ore cars and dockside vessels.

The pockets are modeled structural features rather than an automatically functioning bulk-material handling system.

Build the Ore Loading Chutes Raised or Lowered

One of the most distinctive features of a Great Lakes ore dock is its long row of loading chutes.

At prototype docks, these chutes directed iron ore from elevated storage pockets into the cargo holds of waiting ships.

The Walthers Cornerstone kit allows the chutes to be assembled in either raised or lowered positions.

For a busy loading scene, selected chutes can be built in the lowered position to suggest ore being transferred into a lake freighter.

For an idle terminal, the chutes can be assembled in their raised position.

For a large waterfront scene, a mixture of chute positions can suggest that only part of the dock is actively loading a vessel.

Plan the chute positions before final assembly. They are intended to be positioned during construction rather than powered to move automatically.

Customize the Dock with Modular Construction

The Walthers Cornerstone Ore Dock is designed as a modular structure, making it especially useful for modelers who want to create a larger waterfront terminal.

The standard kit combines three main dock modules into one single-sided structure.

Additional Ore Dock Kits 933-3065, sold separately, can be combined to extend the dock's length or increase the number of loading pockets.

Using multiple kits, modelers can also construct a full-width ore dock with four railroad tracks.

This flexibility makes the kit suitable for a variety of layout sizes and railroad operating requirements.

For a smaller waterfront, the standard narrow configuration provides a substantial industrial landmark.

For a large Great Lakes port, multiple kits can create a more imposing dock complex.

For a backdrop installation, the single-sided design can provide the appearance of a much larger industrial facility without requiring a full-width structure.

Choose a Left- or Right-Hand Railroad Approach

Walthers includes mirror-image base and deck components that allow the elevated railroad approach to be assembled for either left-hand or right-hand access.

This is an important feature when fitting the ore dock into an existing model railroad track plan.

For a waterfront located along the left side of a layout, the approach can be arranged to suit the available railroad connection.

For a harbor located on the opposite side, the alternate configuration can simplify installation.

The elevated approach also helps establish the impressive height of the ore dock above the waterway.

Walthers designed the approaches for integration with suitable components from its Engineered Bridge System.

Explore Walthers Cornerstone bridges and infrastructure for additional railroad structures that can complement the elevated approaches.

Create a Great Lakes Ore Shipping Terminal

The Ore Dock is especially suitable for layouts inspired by the iron ore ports of Michigan, Minnesota, and Wisconsin.

These regions developed extensive railroad networks connecting mines with Lake Superior shipping terminals.

For a steam-era Great Lakes scene, the dock can stand beside a long ore boat waiting to receive iron ore.

For a 1940s industrial railroad, multiple ore trains can arrive throughout the operating day.

For a 1950s layout, the terminal can represent an established ore dock during the transition from steam to diesel locomotives.

For a later-era scene, the structure can represent a surviving traditional ore-loading facility or a retired waterfront landmark.

Separately purchased ore boats, tugboats, dock workers, vehicles, and water scenery can help complete the setting.

Connect Mining Railroads with Steel Mills

The Ore Dock provides an important link in a model railroad steel industry transportation system.

Iron ore begins its journey at a mine, where it is loaded into specialized railroad cars.

The ore cars travel to a waterfront terminal, where the material is transferred to lake freighters.

The ships carry the ore to ports serving steelmaking districts, where it is unloaded and transported to blast furnaces.

For an HO scale railroad, the Walthers Cornerstone Ore Dock can represent the shipping end of this transportation network.

It pairs naturally with layouts featuring mines, ore trains, railroad yards, and steel-related industries.

Browse Walthers Cornerstone industrial structures for additional facilities that can help create a connected industrial railroad scene.

Build Realistic Ore Train Switching Operations

Ore dock operations provide an excellent reason to run dedicated freight trains on a model railroad.

Loaded ore cars can arrive from a mine or classification yard and be switched onto the dock tracks.

After the simulated unloading process, empty cars can be collected and returned toward the mining district.

For a steam-era layout, heavy switching locomotives can handle the dock job.

For a diesel-era railroad, six-axle diesels such as SD7 and SD9 locomotives are historically appropriate examples of power used on some ore dock assignments.

The two-track arrangement allows modelers to represent separate groups of cars awaiting unloading.

For larger operations, multiple dock kits can provide additional tracks and loading pockets.

Railroad track, ore cars, locomotives, and operating controls are sold separately.

Use the Ore Dock as a Background Structure

Despite its impressive length and height, the Walthers Cornerstone Ore Dock has a relatively narrow footprint.

The standard single-sided configuration measures approximately five inches wide, making it suitable for installation along a layout wall or backdrop.

For a Great Lakes waterfront, the dock can form a dramatic industrial skyline behind the harbor.

For a steel-themed railroad, it can serve as a scenic divider between different operating areas.

For a large layout, the structure can help conceal staging tracks or separate scenes when positioned appropriately.

For a waterfront diorama, it can become the main architectural feature.

The repeated storage pockets and elevated deck create an impressive sense of industrial scale.

Plan the Ore Dock Installation

Before assembling the Walthers Cornerstone Ore Dock, carefully plan its location and railroad approaches.

The completed structure measures approximately 48-1/2 inches long, 5 inches wide, and 10 inches tall.

For a waterfront scene, position the dock along the shoreline with enough space for a lake freighter beside the loading chutes.

For a backdrop installation, the narrow single-sided configuration can be placed close to the rear of the layout.

For a railroad operating scene, provide an elevated track connection that allows ore cars to reach the upper deck.

For a larger terminal, determine whether additional kits will be needed before finalizing the track plan.

The left- or right-hand approach options should be selected to match the layout.

Test-fit the dock modules and railroad approaches before permanent installation.

Because of the structure's size, ensure the supporting layout surface is stable and provides adequate access for assembly and maintenance.

Paint and Weather the Ore Dock

Great Lakes ore docks are excellent subjects for realistic industrial weathering.

For a steam-era terminal, the structure can be finished with concrete, steel, and weathered industrial colors.

For a heavily used ore dock, rust-colored ore dust can be added around the loading pockets and discharge chutes.

For a diesel-era waterfront, subtle grime and staining can emphasize the dock's massive structural components.

For a retired ore dock, heavier weathering can suggest years of exposure to the elements.

The elevated approaches can receive appropriate trackside dirt and ballast effects.

The loading chutes can be painted separately to highlight their industrial details.

Weathering should be applied gradually so the structural details remain visible.

Explore Walthers Cornerstone accessories and details for additional industrial scenery components.

Supplies for HO Scale Ore Dock Projects

Modelers assembling and finishing the Ore Dock can browse model railroad paint for customizing the structural components, loading chutes, railroad approaches, and industrial details. Paint and weathering effects can help represent concrete surfaces, steel construction, iron ore dust, and years of heavy waterfront use.

For assembly, explore model building glue and adhesives at Fusion Scale Hobbies. Walthers identifies the kit components as styrene plastic, so choose compatible adhesives and paints. Carefully follow the manufacturer's instructions and test-fit the modular dock sections before permanent assembly.

Important: This product is an unassembled HO scale plastic Ore Dock Kit. The standard configuration builds a single-sided, two-track ore dock with 18 loading pockets, elevated railroad approaches, and loading chutes that can be assembled in raised or lowered positions. The completed model measures approximately 48-1/2 x 5 x 10 inches (123.1 x 12.5 x 25 cm). Additional Ore Dock Kits 933-3065 can be purchased separately to create longer or wider facilities. Railroad track, locomotives, ore cars, ships, figures, paints, adhesives, and surrounding scenery are sold separately. The loading pockets and chutes are scenic model components and do not automatically transfer real bulk material.

The Walthers Cornerstone HO Scale Ore Dock Kit 933-3065 provides a dramatic industrial centerpiece for HO scale railroads featuring iron ore transportation, Great Lakes shipping, steel production, and busy waterfront operations. With its modular construction, two-track upper deck, 18 loading pockets, elevated approaches, and detailed loading chutes, this kit helps create convincing ore train operations and large-scale industrial harbor scenes.
