Walthers Cornerstone HO Scale Pier & Traveling Crane Kit - 933-3067

Walthers Cornerstone HO Scale Pier & Traveling Crane Kit 933-3067 brings the activity of a busy commercial waterfront to your HO scale model railroad. Designed to recreate the piers and cargo-handling equipment found along harbors, rivers, lakes, and industrial waterways, this detailed plastic structure kit includes a versatile pier and a large traveling crane for modeling freight transfers between ships, railroad cars, and trucks.

The completed pier measures 12-5/8 x 5-3/4 x 1-1/2 inches (31.5 x 14.3 x 3.7 cm), while the traveling crane measures 4 x 4 x 9-1/8 inches (10 x 10 x 22.8 cm). The crane features a positionable cab, boom, and hook, allowing modelers to recreate a variety of loading and unloading scenes.

One of the most useful features of this kit is its flexible pier construction. Walthers includes two deck styles, allowing the pier to be assembled with railroad tracks, crane rails, or plain deck sections. The kit provides four deck sections with molded crane rails and grooves for Code 83 or Code 100 railroad rail, along with four plain deck sections. Rail is sold separately.

Whether you're building a steam-era harbor, a transitional-era railroad terminal, a Great Lakes port, or a modern waterfront industrial district, the Pier & Traveling Crane creates a realistic connection between railroad transportation and marine shipping.

Explore HO Scale Walthers Cornerstone structures and the complete Walthers Cornerstone collection for additional railroad buildings, industrial facilities, and waterfront scenery.

Build a Realistic HO Scale Commercial Pier

Commercial piers were essential parts of transportation networks long before modern container terminals became widespread. They allowed ships to dock alongside solid working surfaces where freight could be unloaded, stored temporarily, and transferred to other forms of transportation.

At many ports, railroad tracks extended directly onto the pier, allowing freight cars to be positioned near ships. This reduced the distance cargo needed to be moved and made the transfer of heavy or bulky merchandise more efficient.

The Walthers Cornerstone Pier & Traveling Crane Kit recreates this arrangement with a detailed pier designed for both railroad and highway access.

The pier can represent a waterfront terminal where boxcars receive merchandise from ships, a busy dock where machinery is loaded onto vessels, or a general cargo facility serving a growing industrial city.

For steam-era layouts, it provides a destination for freight cars carrying crates, barrels, machinery, and other merchandise. For diesel-era railroads, it can represent an established port facility that continues handling general cargo.

Browse Walthers Cornerstone railroad structures for additional freight facilities that complement an active waterfront railroad.

Pier & Traveling Crane Kit Features and Dimensions

The Walthers Cornerstone HO Scale Pier & Traveling Crane Kit includes the following manufacturer-confirmed features:

• Detailed commercial pier: Recreates a waterfront loading and unloading facility for ships, railroad cars, and trucks.
• Traveling cargo crane: Includes a large crane designed to represent cargo-handling operations along the pier.
• Positionable crane cab: Allows the crane to be displayed in different working positions.
• Positionable boom: Provides flexibility for modeling cargo lifting and transfer scenes.
• Positionable hook: Can be arranged to represent different lifting operations.
• Two pier deck styles: Includes four sections with molded crane rails and railroad rail grooves, plus four plain deck sections.
• Code 83 or Code 100 compatibility: Molded grooves accommodate separately purchased railroad rail.
• Embedded railroad track arrangement: Allows rail traffic and road vehicles to share the pier surface.
• Flexible pier assembly: Deck sections can be arranged to suit different waterfront installations.
• Waterfront details: Includes pier components such as pilings, mooring fittings, and rail stops.
• Colorful decals: Provides markings for completing the scene.
• Three molded colors and clear plastic: Provides a starting point for assembly and finishing.
• Steam- and diesel-era applications: Suitable for historical and later waterfront railroad scenes.

Completed pier dimensions: 12-5/8 x 5-3/4 x 1-1/2 inches (31.5 x 14.3 x 3.7 cm).

Completed traveling crane dimensions: 4 x 4 x 9-1/8 inches (10 x 10 x 22.8 cm).

Scale: HO Scale, 1:87.

Product type: Commercial waterfront pier and traveling crane plastic structure kit.

Pier deck sections: Four sections with crane rails and railroad rail grooves, plus four plain deck sections.

Compatible railroad rail: Code 83 or Code 100, sold separately.

Crane operation: Manually positionable components; nonpowered model.

Manufacturer item number: 933-3067.

The dimensions describe the completed pier and crane as shown by the manufacturer. Additional space may be needed for vessels, railroad approaches, cargo storage, trucks, and surrounding waterfront scenery.

Recreate a Traveling Waterfront Cargo Crane

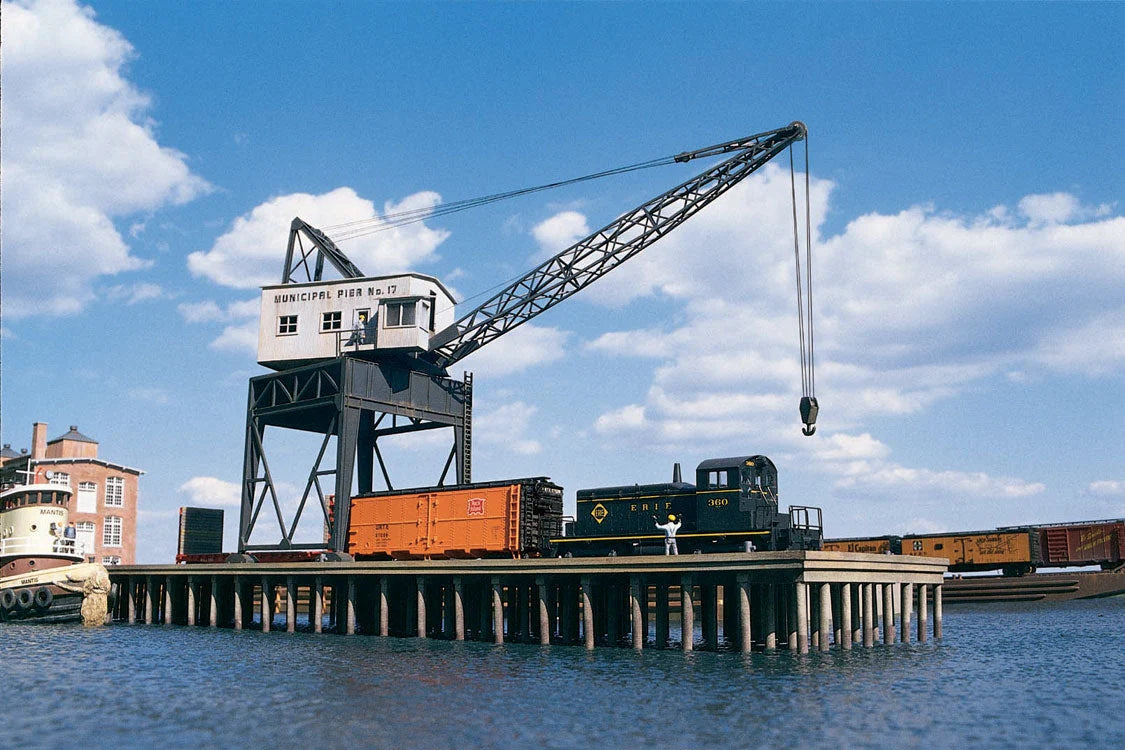

The traveling crane is one of the most distinctive features of the Walthers Cornerstone Pier & Traveling Crane Kit.

Prototype traveling cranes were designed to move along rails installed on piers and docks, allowing one crane to serve different positions along the waterfront.

This arrangement made it possible to load and unload ships without requiring a separate fixed crane at every berth.

The Walthers model recreates the appearance of this equipment with a large crane featuring a detailed support structure, cab, boom, and hook.

The crane can be positioned to represent cargo being lifted from a ship, transferred to a railroad car, or placed onto the pier.

For a steam-era port, it can handle machinery, crates, and other general merchandise. For a transitional-era terminal, it can represent equipment used alongside railroad boxcars and trucks.

The crane is not motorized, but its positionable components provide opportunities to create different working scenes.

Position the Crane Cab, Boom, and Hook

Walthers designed the traveling crane with several positionable features that allow modelers to customize its appearance.

The crane cab can be positioned to suggest different operating directions.

The boom can be arranged to represent a lifting operation over a ship, railroad car, or cargo area.

The hook can be positioned to suggest the handling of heavy freight.

For a harbor scene, the crane can be displayed with its boom extended over a docked vessel.

For a railroad terminal, the crane can be positioned near a freight car to represent cargo being transferred from rail to ship.

For an industrial pier, it can stand above machinery, steel products, or other heavy cargo awaiting shipment.

These manually positionable components help create the appearance of an active waterfront without requiring powered crane equipment.

Review the assembly instructions before applying adhesive to parts intended to remain movable.

Choose Between Two Pier Deck Styles

One of the major advantages of the Walthers Cornerstone Pier & Traveling Crane Kit is its flexible deck construction.

The kit includes two different types of pier deck sections.

Four sections feature molded crane rails and grooves designed to accept Code 83 or Code 100 railroad rail.

Four additional sections feature plain deck surfaces.

This allows modelers to arrange the pier to suit the type of waterfront facility being represented.

For a railroad-served terminal, the deck sections with rail grooves can be used to create track access for freight cars.

For a cargo-handling pier, the crane rails can establish the path traveled by the crane.

For a truck-served dock, plain deck sections can provide additional working space.

For a larger waterfront, the deck sections can be arranged to create a custom pier configuration.

The manufacturer's instructions show options for joining the sections lengthwise or widthwise, allowing additional flexibility during construction.

Install Code 83 or Code 100 Railroad Rail

The Walthers Cornerstone Pier & Traveling Crane Kit is designed to accommodate HO scale railroad rail within the pier deck.

The molded grooves accept Code 83 or Code 100 rail, allowing modelers to choose the rail size that best matches their layout.

Because the rails are recessed into the pier surface, the completed scene can represent a working dock where railroad cars and road vehicles share the same general loading area.

For a steam-era terminal, the track can carry boxcars directly alongside ships.

For a diesel-era port, it can provide access for switchers moving freight cars onto the pier.

For a compact switching layout, the pier can become an industrial destination requiring careful spotting of railroad cars.

For a large harbor scene, the pier track can connect with a waterfront railroad serving several industries.

Important: Code 83 and Code 100 rail are sold separately and are not included with the kit.

Test-fit the selected rail and rolling stock before permanently installing the track to ensure suitable alignment and clearances.

Create Realistic Ship-to-Rail Freight Transfers

One of the most interesting applications for the Pier & Traveling Crane is a freight terminal where cargo moves directly between ships and railroad cars.

At prototype waterfront facilities, freight cars were often spotted on piers so cranes could transfer merchandise with minimal additional handling.

The Walthers Cornerstone kit recreates this type of operation with its embedded track arrangement and traveling crane.

For a steam-era layout, a boxcar can be positioned on the pier while the crane lifts cargo from a nearby vessel.

For a transitional-era scene, freight cars and trucks can share the pier as merchandise moves between transportation systems.

For a modern industrial waterfront, the pier can represent an established general cargo facility.

Modelers can add separately purchased crates, machinery, steel products, and other freight loads to create realistic shipping scenes.

The positionable crane hook can be arranged above the cargo to suggest an active lifting operation.

Railroad cars, ships, cargo loads, and additional handling equipment are sold separately.

Model Truck and Forklift Operations on the Pier

Not all waterfront cargo was transferred directly between ships and railroad cars.

Many piers also handled trucks, forklifts, and other road vehicles used to move merchandise between ships and nearby warehouses.

The Walthers Cornerstone Pier & Traveling Crane Kit represents this type of mixed transportation facility.

The embedded railroad track design allows the pier surface to accommodate road vehicles as well as freight cars.

For a 1940s or 1950s port, trucks can be positioned near the crane to represent local deliveries.

For a diesel-era waterfront, forklifts can move pallets and cargo between the pier and nearby storage buildings.

For a modern industrial scene, the pier can handle machinery, construction materials, and other general cargo.

Separately purchased vehicles, figures, and freight loads can help establish the chosen period.

Detail the Pier Pilings and Mooring Equipment

Commercial piers require substantial supporting structures and fittings to accommodate vessels and cargo-handling operations.

The Walthers Cornerstone kit includes pier components such as pilings and mooring fittings.

The pilings represent the structural supports extending beneath the pier deck.

Mooring fittings provide locations where ships can be secured alongside the dock.

For a harbor scene, these details help establish the appearance of a working commercial pier.

For a riverfront railroad, they can be combined with water scenery and dockside vessels.

For a Great Lakes port, the pier can represent a freight terminal handling commercial shipping.

For a historic waterfront, subtle weathering can suggest years of exposure to water and industrial activity.

The manufacturer's instructions also identify rail stops used at the ends of the crane rails and railroad track.

Careful placement of these details can help create a more convincing waterfront installation.

Expand the Pier with the Walthers Pier Add-On Kit

For modelers building a larger waterfront, Walthers offers the Cornerstone HO Scale Pier Add-On Kit 933-3154, sold separately.

This accessory provides additional pier sections designed to work with the Pier & Traveling Crane Kit.

The add-on includes molded crane rails and grooves for Code 83 or Code 100 railroad rail.

For a larger harbor scene, additional pier sections can provide space for longer vessels.

For a busy freight terminal, an extended pier can accommodate more cargo-handling activity.

For a railroad-served dock, the additional deck sections can create a longer trackside loading area.

For a large waterfront layout, the pier can become part of a substantial industrial shipping complex.

The Pier Add-On Kit 933-3154 is a separate product and is not included with the Pier & Traveling Crane Kit 933-3067.

Combine the Pier with Front Street Warehouse

The Walthers Cornerstone HO Scale Front Street Warehouse Kit 933-3069, sold separately, is an excellent companion for the Pier & Traveling Crane.

Historic waterfront warehouses provided storage for merchandise moving between ships, railroad cars, and trucks.

For a steam-era harbor, the warehouse can stand near the pier to represent a busy general cargo terminal.

For a transitional-era railroad, the two structures can create a realistic connection between marine shipping and railroad freight operations.

For a diesel-era waterfront, the warehouse can continue handling cargo arriving by ship and departing by truck or rail.

For a large industrial district, the pier and warehouse can become part of a larger network of freight-handling facilities.

The warehouse's brick architecture contrasts well with the open pier and traveling crane.

Browse Walthers Cornerstone industrial structures for additional buildings that complement a waterfront shipping terminal.

Build a Railroad Car Float Terminal

Railroad car floats were an important part of freight transportation in many waterfront cities.

These specialized barges carried railroad freight cars across rivers and harbors, allowing railroads to connect terminals separated by water.

The Pier & Traveling Crane can complement a model railroad car float operation.

For a steam-era harbor, the pier can stand near a car float apron where freight cars are transferred between land and water.

For a transitional-era railroad, the crane can handle general cargo while nearby car floats transport railroad cars.

For a large port city, the two operations can help create a busy waterfront industrial district.

The Walthers Cornerstone HO Scale Car Float Apron Kit 933-3068, sold separately, can provide the railroad-to-barge transfer facility.

The Walthers Cornerstone HO Scale Railroad Car Float Kit 933-3152, also sold separately, can represent the vessel used to transport railroad cars.

These companion models can help create a complete waterfront transportation scene with several different freight-handling operations.

Create a Great Lakes or River Port Scene

The Pier & Traveling Crane is suitable for many different types of North American waterfront settings.

For a Great Lakes industrial city, it can represent a general cargo pier serving commercial vessels.

For a river port, the pier can stand alongside a navigable waterway where freight is transferred between boats and railroad cars.

For a coastal harbor, it can become part of a busy shipping terminal.

For a canal scene, the pier can serve smaller commercial vessels traveling between industrial districts.

For a large metropolitan waterfront, several piers and warehouses can be arranged together to create a dense industrial scene.

The traveling crane provides a recognizable focal point that helps identify the area as an active cargo-handling facility.

Additional water scenery, ships, tugboats, barges, and industrial buildings can complete the setting.

Model Waterfront Operations from the Steam Era

Commercial piers were essential parts of transportation networks during the steam era.

For an early twentieth-century railroad, the Pier & Traveling Crane can represent a busy freight terminal handling merchandise from ships.

For a 1920s layout, boxcars can be spotted on the pier while the crane handles heavy cargo.

For a 1930s scene, the pier can serve an established industrial harbor.

For a 1940s railroad, it can represent a busy port handling machinery, supplies, and general freight.

For a 1950s layout, the pier can continue operating as diesel locomotives begin replacing steam power.

The kit's traditional pier design and traveling crane make it suitable for these historical railroad scenes.

Period freight cars, ships, vehicles, and cargo loads can help establish the selected modeling era.

Use the Pier on a Diesel-Era Railroad Layout

Many traditional commercial piers remained active long after railroads transitioned from steam to diesel locomotives.

The Walthers Cornerstone Pier & Traveling Crane can represent one of these established waterfront facilities.

For a 1950s railroad, diesel switchers can move boxcars onto the pier for loading and unloading.

For a 1960s layout, the pier can handle a mixture of rail and truck freight.

For a 1970s scene, it can represent an older general cargo terminal operating alongside newer shipping facilities.

For a 1980s waterfront, the pier can remain active or be modeled as a declining industrial facility.

For a contemporary layout, it can represent a preserved or specialized cargo-handling pier.

The surrounding freight cars, vehicles, signs, and cargo loads can help establish the chosen period.

Use the Pier for Railroad Switching Operations

The Pier & Traveling Crane provides an excellent destination for railroad switching movements.

Because the pier can accommodate embedded railroad track, freight cars can be spotted directly beside the cargo-handling area.

For a steam-era switching layout, boxcars can arrive carrying merchandise destined for ships.

For a transitional-era railroad, freight cars can deliver machinery, equipment, and other general cargo.

For a diesel-era industrial district, the pier can handle inbound and outbound shipments through a waterfront terminal.

For a large harbor railroad, the pier can become one of several industrial destinations served by a local switcher.

Modelers can create operating scenarios in which loaded freight cars arrive at the pier and empty cars are collected after unloading.

The traveling crane provides a visual explanation for how heavy cargo moves between the railroad and nearby vessels.

Freight car selection should match the commodity and modeling period represented.

Plan the Pier & Traveling Crane Installation

Before assembling the Walthers Cornerstone Pier & Traveling Crane, determine where the structure will be positioned on the layout.

The completed pier measures 12-5/8 x 5-3/4 x 1-1/2 inches, while the crane measures 4 x 4 x 9-1/8 inches.

For a harbor scene, position the pier along a waterway with enough space for a ship or barge to dock alongside.

For a railroad-served terminal, plan the track alignment before permanently assembling the deck sections.

For a truck-served pier, allow room for road access and vehicle movement.

For a larger waterfront, consider whether additional pier sections will be needed.

For a compact layout, the pier can be arranged to provide a recognizable shipping scene without constructing an entire harbor.

Because the crane is over 9 inches tall, consider overhead clearance and the surrounding industrial skyline.

Test-fitting the pier sections, crane, railroad track, and nearby vessels before permanent installation is recommended.

Paint and Weather the Pier & Traveling Crane

Commercial piers and cargo cranes are excellent subjects for realistic painting and weathering because they are exposed to water, industrial activity, and heavy freight handling.

For a steam-era waterfront, the pier can be finished in colors appropriate to an established industrial dock.

For a diesel-era harbor, the crane can receive subtle rust and grime to suggest years of operation.

For a modern industrial terminal, the crane can be painted in a maintained industrial color scheme.

The pier deck can receive weathering to suggest frequent movement of freight cars, trucks, and cargo.

The pilings can be finished with waterline staining and weathering effects.

The crane's boom, cab, and hook can be painted separately to highlight their details.

Care should be taken not to glue or paint over components intended to remain positionable.

Separately purchased cargo loads, figures, vehicles, and waterfront accessories can help create an active scene.

Explore Walthers Cornerstone accessories and details for additional scenery components.

Supplies for HO Scale Waterfront Pier Projects

Modelers assembling and finishing the Pier & Traveling Crane can browse model railroad paint for customizing the pier deck, pilings, crane structure, boom, cab, hook, and other details. Painting and weathering can help the model represent a busy steam-era harbor, an established diesel-era freight terminal, or a maintained contemporary waterfront facility.

For assembly, explore model building glue and adhesives at Fusion Scale Hobbies. Walthers identifies the kit components as styrene plastic, so choose compatible adhesives and paints. Follow the manufacturer's instructions and test-fit the pier sections, crane components, and rail grooves before permanent assembly.

Important: This product is an unassembled HO scale plastic Pier & Traveling Crane Kit. It includes pier deck sections with two different surface styles, molded crane rails, grooves for Code 83 or Code 100 railroad rail, a detailed nonpowered traveling crane with positionable cab, boom, and hook, and additional pier details. The completed pier measures 12-5/8 x 5-3/4 x 1-1/2 inches (31.5 x 14.3 x 3.7 cm), while the crane measures 4 x 4 x 9-1/8 inches (10 x 10 x 22.8 cm). Railroad rail, locomotives, freight cars, ships, trucks, figures, cargo loads, Pier Add-On Kit 933-3154, paints, adhesives, and additional scenery are sold separately. The crane is nonpowered and does not include an operating motorized lifting or traveling mechanism.

The Walthers Cornerstone HO Scale Pier & Traveling Crane Kit 933-3067 provides a detailed and versatile waterfront structure for HO scale railroad layouts. With its customizable pier sections, embedded railroad track arrangement, positionable traveling crane, and realistic cargo-handling appearance, this kit helps create convincing harbor terminals, railroad-served piers, industrial waterfronts, and ship-to-rail freight transfer operations.
