Walthers Cornerstone HO Scale Operating Single-Track Railroad Bascule Bridge Kit - 933-3070

Walthers Cornerstone HO Scale Operating Single-Track Railroad Bascule Bridge Kit 933-3070 brings the impressive appearance and movement of a working railroad lift bridge to HO scale layouts. Based on prototype bascule bridges used where railroads cross navigable rivers, canals, and busy waterways, this detailed operating structure kit recreates the steel framework, massive counterweight, and mechanical lifting action associated with these distinctive railroad bridges.

Unlike a conventional fixed railroad bridge, a bascule bridge pivots upward from one end to provide clearance for boats and ships passing beneath the railroad. The Walthers Cornerstone model recreates this operation with an included low-speed motor and gear drive that raises and lowers the bridge. Its detailed construction includes authentic steel trusses, structural chords, rivet details, a large concrete counterweight, an elevated bridge tender's shanty, and a brick trackside interlocking tower.

The bridge is part of the Walthers Cornerstone Engineered Bridge System and is designed for use with the WalthersTrack Code 83 Bridge Track Set 948-83004, sold separately. Its generous clearances allow modelers to incorporate both large steam locomotives and modern taller railroad equipment, including double-stack container trains, where the rest of the layout provides adequate clearance.

The manufacturer lists the kit at 33-1/2 x 3 x 11 inches (83.7 x 7.5 x 27.5 cm). Walthers also specifies a completed bridge span and approach measuring 34-1/4 x 3-1/4 x 11 inches (86 x 8.1 x 27.5 cm), plus a separate interlocking tower baseplate measuring 2-1/8 x 3-3/4 inches (5.3 x 9.3 cm).

Explore HO Scale Walthers Cornerstone structures and the complete Walthers Cornerstone collection for additional railroad bridges, trackside buildings, and layout scenery.

Build a Realistic Operating HO Scale Railroad Bascule Bridge

Railroads crossing navigable waterways face a unique challenge: trains require a stable track connection, while boats and ships need sufficient clearance to travel along the waterway.

Movable railroad bridges solve this problem by opening when marine traffic needs to pass and closing to allow trains to cross.

The bascule bridge is one of the most recognizable movable bridge designs. Its hinged span rotates upward from one end, much like a drawbridge, while a counterweight helps balance the structure.

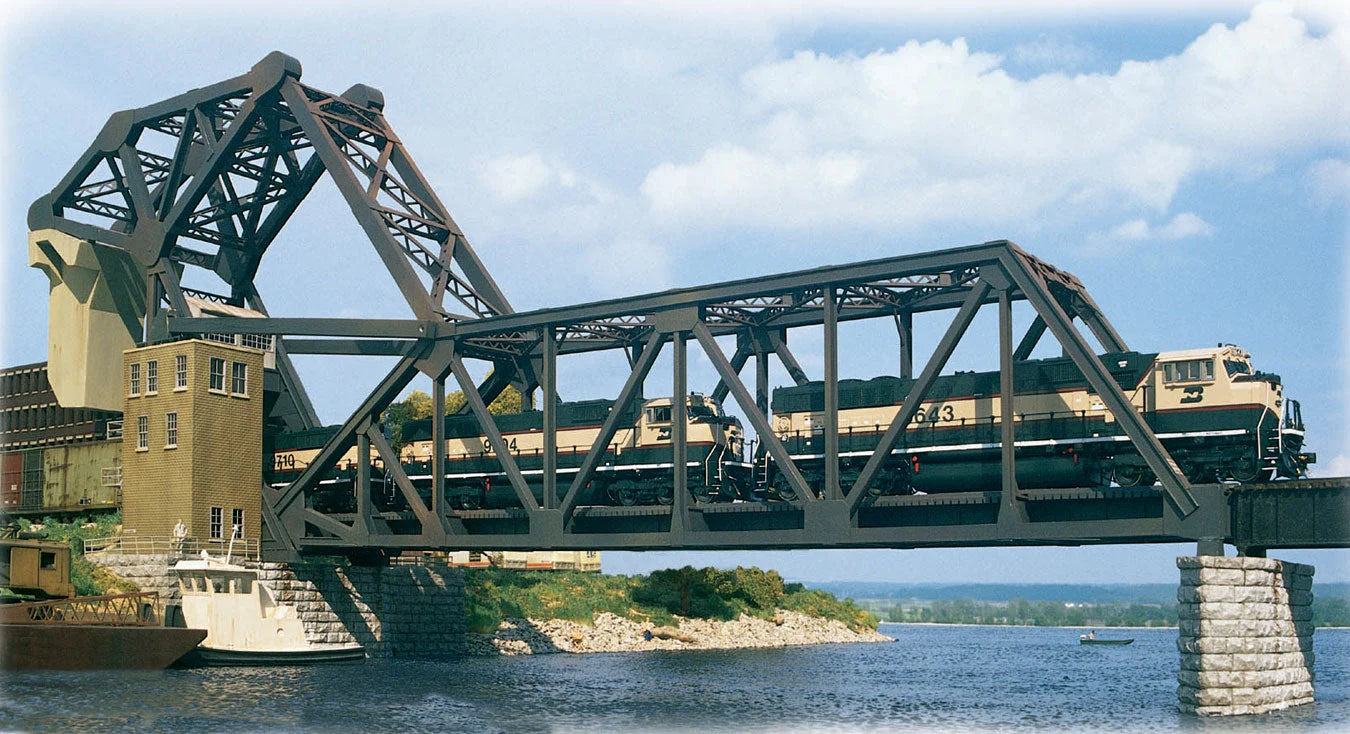

Walthers recreates this type of bridge with an operating HO scale model that combines detailed structural components with an included motorized lifting mechanism.

For a steam-era layout, the bridge can represent an important crossing used by passenger and freight trains traveling through a waterfront industrial district.

For a transitional-era railroad, it can handle steam locomotives and early diesel-powered trains.

For a modern freight railroad, the bridge can become a distinctive operating feature along a busy mainline.

For a waterfront layout, the moving span provides an opportunity to coordinate railroad movements with boats and ships passing along the waterway.

Browse Walthers Cornerstone bridges and infrastructure for additional structures suitable for railroad crossings, bridge approaches, and transportation scenes.

Operating Bascule Bridge Kit Features and Dimensions

The Walthers Cornerstone HO Scale Operating Single-Track Railroad Bascule Bridge Kit includes the following manufacturer-confirmed features:

• Operating bascule bridge: Recreates the upward lifting movement of a prototype railroad drawbridge.
• Low-speed motor and gear drive included: Provides the mechanical system used to raise and lower the bridge.
• Single-track railroad design: Suitable for one railroad track crossing a navigable waterway.
• Detailed steel trusses: Recreates the structural framework of a large railroad bridge.
• Authentic chords and cross-sections: Adds realistic depth to the steel bridge construction.
• Rivet details: Represents the appearance of traditional fabricated steel bridge components.
• Large concrete counterweight: Recreates the massive balancing structure used by prototype bascule bridges.
• Elevated bridge tender's shanty: Represents the operator's building mounted high within the bridge framework.
• Brick trackside interlocking tower: Adds a separate railroad control building to the scene.
• Clearance for taller railroad equipment: Designed to accommodate large steam locomotives and modern double-stack equipment.
• Walthers Cornerstone Engineered Bridge System: Designed for integration with compatible bridge components.
• Compatible Code 83 bridge track: Uses WalthersTrack Code 83 Bridge Track Set 948-83004, sold separately.
• Molded plastic components: Parts are molded in two colors and clear plastic.
• HO scale: Designed for 1:87 scale model railroad layouts.

Manufacturer-listed kit dimensions: 33-1/2 x 3 x 11 inches (83.7 x 7.5 x 27.5 cm).

Finished bridge span and approach: 34-1/4 x 3-1/4 x 11 inches (86 x 8.1 x 27.5 cm).

Interlocking tower baseplate: 2-1/8 x 3-3/4 inches (5.3 x 9.3 cm).

Scale: HO Scale, 1:87.

Bridge configuration: Single-track operating bascule bridge.

Operating mechanism: Included low-speed motor and gear drive.

Recommended bridge track: WalthersTrack Code 83 Bridge Track Set 948-83004, sold separately.

Manufacturer item number: 933-3070.

Additional layout space will be needed for the bridge approaches, waterway, scenery, and the movement of the span. The bridge must be installed with suitable clearances for its complete lifting motion.

Understand How a Railroad Bascule Bridge Operates

A bascule bridge is a movable bridge that rotates around a horizontal pivot near one end of the span.

When the bridge is closed, the movable span aligns with the railroad approaches to provide a continuous route for trains.

When a vessel needs to pass, the bridge opens by rotating the span upward.

A large counterweight balances much of the bridge's weight, reducing the force required to lift the structure.

This arrangement allows a large steel span to move more efficiently than would be possible without the counterweight.

Walthers identifies the bascule design as particularly suitable for busy waterways because it requires relatively little space, uses fewer moving parts than some other movable bridge arrangements, and can open quickly.

The bridge can also be raised only as far as necessary to provide clearance for a particular vessel.

The Walthers Cornerstone model recreates the essential appearance and lifting action of this type of structure.

Its included low-speed motor and gear drive move the bridge span, while the molded counterweight and steel framework provide the recognizable prototype appearance.

Operate the Bridge with the Included Motor and Gear Drive

One of the most important features of the Walthers Cornerstone Operating Single-Track Railroad Bascule Bridge is its included motorized mechanism.

The kit contains a low-speed motor and gear drive designed to raise and lower the bridge.

This distinguishes the model from ordinary static railroad bridge kits.

For an operating railroad layout, the bridge can become an active part of train movements rather than simply a scenic structure.

For a waterfront scene, modelers can raise the bridge to represent the passage of a boat or ship.

For a freight railroad, the span can be lowered before a train is allowed to cross.

For a passenger railroad, the bridge can become part of a realistic operating sequence involving signals and scheduled train movements.

For a model railroad club layout, the operating bridge can provide an engaging feature for visitors.

The motor and gear drive are included, but modelers should follow the manufacturer's instructions for the required electrical connections, controls, and installation.

Do not assume that a separate automatic train detection, signaling, or safety interlock system is included.

Recreate the Massive Concrete Counterweight

The counterweight is one of the defining features of a bascule bridge.

Prototype railroad bascule bridges use large counterweights to balance the movable steel span.

This reduces the amount of power needed to raise and lower the bridge.

The Walthers Cornerstone kit includes a large simulated concrete counterweight that recreates the appearance of this important structural component.

For a steam-era bridge, the counterweight can be weathered to represent an established railroad crossing.

For a modern railroad, it can be finished in concrete colors with subtle dirt and staining.

For a waterfront industrial scene, the massive counterweight helps explain the mechanical operation of the bridge.

For a detailed model, the counterweight can be highlighted with careful painting to distinguish it from the steel framework.

The counterweight is a scale representation of the prototype structure and forms part of the kit's visual design.

Build Detailed Steel Trusses and Structural Framework

The Walthers Cornerstone Operating Single-Track Railroad Bascule Bridge includes detailed plastic components that recreate the steel framework of a prototype railroad bridge.

The model features structural trusses, chords, cross-sections, and rivet details.

These components give the bridge its distinctive industrial appearance.

For a steam-era railroad, the steel framework can represent a substantial bridge built to carry heavy locomotives and freight trains.

For a transitional-era layout, it can become an established crossing used by both steam and diesel power.

For a modern railroad, the same structure can represent a long-serving bridge that continues handling contemporary freight traffic.

For a close-up waterfront scene, the structural details provide excellent opportunities for painting and weathering.

The trusses and chords can be finished in appropriate railroad bridge colors.

Subtle rust, grime, and weathering can help emphasize the molded rivets and steel members.

Careful assembly is important because the bridge must maintain proper alignment for reliable operation.

Add the Elevated Bridge Tender's Shanty

Movable railroad bridges often included a small operator's building where the bridge tender could supervise the opening and closing of the span.

The Walthers Cornerstone kit includes an elevated bridge tender's shanty positioned high within the bridge framework.

This distinctive detail helps identify the structure as an operating movable bridge.

For a steam-era waterfront scene, the shanty can represent the location where an employee controls the bridge.

For a diesel-era railroad, it can suggest an established bridge operating facility.

For a modern layout, the shanty can remain as part of the historic bridge structure.

Modelers can paint the shanty in colors that complement the steel framework or match the railroad's standard building scheme.

Clear plastic components included with the kit can be used according to the assembly instructions.

Separately purchased lighting and figures may be added if the modeler wishes to create a more detailed operator's area.

Include the Brick Trackside Interlocking Tower

In addition to the operating bridge, the Walthers Cornerstone kit includes a brick trackside interlocking tower.

Interlocking towers were used to coordinate railroad switches, signals, and train movements at busy operating locations.

At movable bridges, control and signaling systems helped prevent trains from approaching a bridge that was open for marine traffic.

The included tower provides an appropriate companion structure for the bascule bridge.

For a steam-era scene, it can represent a traditional control point near the bridge approach.

For a diesel-era railroad, it can stand beside the track where operators oversee movements through the crossing.

For a modern layout, the tower can represent an older structure retained near the bridge.

The separate tower baseplate measures 2-1/8 x 3-3/4 inches (5.3 x 9.3 cm).

The tower is a scenic building and does not automatically operate the bridge motor, railroad signals, or turnouts.

For additional railroad control buildings, browse Walthers Cornerstone trackside structures.

Model Railroad Crossings Over Navigable Waterways

Railroad bascule bridges are especially suitable for layouts featuring rivers, canals, harbors, and industrial waterways.

These locations often require railroads to cross routes used by commercial shipping.

For a Great Lakes industrial scene, the bridge can represent a crossing near docks, warehouses, and manufacturing facilities.

For a riverfront railroad, it can connect industrial districts on opposite banks.

For a harbor layout, it can provide access to waterfront freight terminals.

For a canal scene, the bridge can be positioned above a narrow navigable waterway.

For a large city railroad, it can become a prominent landmark where rail transportation meets marine traffic.

The moving span adds realism by representing the need to coordinate train movements with vessels passing beneath the bridge.

Separately purchased boats, barges, tugboats, waterfront structures, and scenery can help complete the setting.

Create Realistic Train and Marine Traffic Operations

An operating bascule bridge provides opportunities for realistic model railroad operating sequences.

At a prototype crossing, train movements must be coordinated with marine traffic to ensure that the bridge is correctly positioned before a train enters the span.

For an HO scale layout, modelers can simulate this process by stopping a train before the bridge.

The bridge can then be raised to represent the passage of a boat or ship.

After the vessel clears the crossing, the span can be lowered into position.

Once the modeler has confirmed that the bridge is fully closed, aligned, and safe for operation, the train can proceed.

For a club layout, this sequence can become an engaging operating feature.

For a waterfront industrial railroad, it can add variety to freight switching movements.

For a passenger railroad, the bridge can represent an important point where train schedules and waterway traffic must be coordinated.

Important: Never run a locomotive or freight car onto the bridge while the span is moving or improperly aligned. Any automatic safety interlocking or train-detection system must be provided separately.

Use the Bridge with Steam Locomotives and Modern Freight Trains

Walthers designed the Operating Single-Track Railroad Bascule Bridge to accommodate a wide range of HO scale railroad equipment.

The manufacturer specifically notes that the bridge is suitable for large steam locomotives and modern double-stack container trains.

For a steam-era layout, the bridge can represent a major crossing built to handle heavy locomotives and freight traffic.

For a 1950s railroad, it can carry both steam and diesel-powered trains.

For a 1970s or 1980s scene, it can become an established bridge serving modernized freight operations.

For a contemporary railroad, it can represent a long-serving structure carrying intermodal and general freight trains.

Because the bridge is a single-track design, it is especially suitable for a single mainline or an industrial railroad connection.

Modelers should confirm clearances and track alignment with their actual rolling stock before operating trains across the completed bridge.

The track set required for the bridge is sold separately.

Install Compatible WalthersTrack Code 83 Bridge Track

The Walthers Cornerstone Operating Single-Track Railroad Bascule Bridge is designed for use with the WalthersTrack Code 83 Bridge Track Set 948-83004.

This track set is sold separately and should be obtained when planning the bridge installation.

Bridge track is an important component because the rails must align correctly with the approach tracks when the span is closed.

For an operating bridge, accurate track alignment is essential for reliable train movements.

For a mainline installation, the approaches should be carefully positioned to provide a smooth transition onto the bridge.

For an industrial railroad, the bridge can be connected to suitable Code 83 trackwork.

For a waterfront scene, the track should be installed only after the bridge structure and lifting mechanism have been tested according to the manufacturer's instructions.

Modelers should follow the bridge and track manufacturers' guidance for rail installation, electrical connections, and clearances.

Important: WalthersTrack Code 83 Bridge Track Set 948-83004 is not included with the bascule bridge kit.

Combine the Bridge with Concrete Abutments

Railroad bridges require stable approaches and supporting structures to connect the bridge span with the surrounding right-of-way.

The Walthers Cornerstone Operating Single-Track Railroad Bascule Bridge is part of the Engineered Bridge System, which includes compatible bridge components.

Walthers identifies its Single-Track Concrete Abutments Kit as a related bridge accessory.

For a river crossing, concrete abutments can help establish the transition between the railroad embankment and bridge structure.

For a canal scene, the abutments can be incorporated into the waterway banks.

For an industrial waterfront, the approach structures can be surrounded by retaining walls, service roads, and railroad scenery.

For a large city crossing, the bridge can be positioned between substantial engineered approaches.

Any separately purchased abutments should be checked for compatibility with the planned bridge elevation and installation.

Modelers can also construct custom approaches using suitable scenery materials.

Build a Complete Waterfront Railroad District

The Operating Single-Track Railroad Bascule Bridge can become the centerpiece of a larger waterfront railroad scene.

For a busy harbor, the bridge can connect industrial districts separated by a navigable channel.

For a riverfront layout, it can provide a route between warehouses, factories, and freight terminals.

For a Great Lakes scene, the bridge can stand near docks and commercial shipping facilities.

For a modern industrial district, it can connect a mainline with waterfront industries.

The Walthers Cornerstone HO Scale Front Street Warehouse Kit 933-3069, sold separately, is one possible companion for a waterfront freight scene.

The Walthers Cornerstone HO Scale Car Float Apron Kit 933-3068, also sold separately, can add another railroad-and-waterway operation.

These structures can help create a realistic industrial harbor with several types of freight handling.

Explore Walthers Cornerstone railroad structures for additional buildings that complement a waterfront railroad district.

Model a Steam-Era Movable Railroad Bridge

Movable railroad bridges were important features of many steam-era railroad systems.

Large industrial cities often required railroads to cross rivers and canals used by commercial vessels.

For an early twentieth-century layout, the Walthers Cornerstone bascule bridge can represent a major engineered crossing.

For a 1920s railroad, it can serve a busy industrial district with steam locomotives and freight cars.

For a 1930s scene, the bridge can stand near factories, warehouses, and waterfront terminals.

For a 1940s railroad, it can represent an important transportation link handling wartime or postwar freight traffic.

For a 1950s layout, the bridge can continue operating as diesel locomotives replace steam power.

The detailed steel trusses, counterweight, bridge tender's shanty, and interlocking tower help establish the appearance of a traditional railroad bridge.

Period rolling stock, waterfront buildings, and marine vessels can complete the scene.

Use the Bridge on a Modern Railroad Layout

Many historic movable railroad bridges remained in service long after their original construction.

The Walthers Cornerstone Operating Single-Track Railroad Bascule Bridge can represent one of these long-serving structures on a contemporary layout.

For a modern freight railroad, the bridge can handle diesel locomotives and freight trains traveling through a waterfront industrial district.

For an intermodal railroad, the bridge's generous clearances can accommodate taller equipment when the surrounding track and scenery also provide sufficient clearance.

For a regional railroad, the bridge can connect industries on opposite sides of a river or canal.

For a modern harbor scene, the movable span can provide clearance for commercial vessels.

The bridge can be painted and weathered to suggest decades of service.

Additional signals, lighting, and trackside equipment can help establish a later-era appearance.

Plan the Bascule Bridge Installation

Before assembling the Walthers Cornerstone Operating Single-Track Railroad Bascule Bridge, carefully plan the installation location.

The manufacturer lists the finished bridge span and approach at 34-1/4 x 3-1/4 x 11 inches.

The bridge requires sufficient space for the movable span to rise without contacting scenery, overhead structures, or other equipment.

For a river crossing, plan the waterway width and bridge approaches before permanently installing the structure.

For a canal scene, the bridge can be positioned above a narrow shipping channel.

For a waterfront industrial district, allow space for the bridge tender's shanty, interlocking tower, and supporting scenery.

For an operating railroad, the approach tracks must align precisely with the bridge rails when the span is closed.

For a large layout, access to the motor and gear drive should be considered during construction and maintenance planning.

Modelers should test the lifting mechanism before permanently securing surrounding scenery.

Follow the manufacturer's instructions for the mechanical and electrical installation.

Paint and Weather the Steel Railroad Bridge

Railroad bascule bridges are excellent subjects for realistic painting and weathering because their steel framework, moving machinery, and concrete counterweights are exposed to outdoor conditions.

For a newly maintained bridge, the steel trusses can be finished in clean railroad bridge colors.

For an established industrial crossing, subtle rust and grime can emphasize the rivets and structural details.

For a waterfront scene, weathering can suggest exposure to moisture and heavy industrial traffic.

The concrete counterweight can be finished in suitable gray tones with subtle staining.

The bridge tender's shanty can be painted to complement the main structure.

The brick interlocking tower can receive contrasting brick and mortar colors.

Care should be taken to avoid applying paint or weathering materials to moving mechanical components in a way that could interfere with operation.

Before painting the motorized assembly, review the instructions and identify all areas that must remain free of paint, adhesive, and debris.

Explore Walthers Cornerstone accessories and details for additional railroad scenery components.

Supplies for HO Scale Operating Railroad Bridge Projects

Modelers assembling and finishing the Operating Single-Track Railroad Bascule Bridge can browse model railroad paint for customizing the steel trusses, structural chords, concrete counterweight, bridge tender's shanty, and brick interlocking tower. Painting and weathering can help the model represent a well-maintained railroad crossing or a historic movable bridge with decades of service.

For assembly, explore model building glue and adhesives at Fusion Scale Hobbies. Choose adhesives compatible with plastic structure kits and follow the manufacturer's assembly instructions. Take particular care around the motor, gear drive, pivot points, and other moving components to avoid interfering with the bridge's operating mechanism.

Important: This product is an unassembled HO scale operating single-track railroad bascule bridge kit. It includes detailed plastic bridge components, steel truss and rivet details, a simulated concrete counterweight, an elevated bridge tender's shanty, a brick trackside interlocking tower, and a low-speed motor with gear drive for raising and lowering the span. The finished bridge span and approach measure 34-1/4 x 3-1/4 x 11 inches (86 x 8.1 x 27.5 cm). The interlocking tower baseplate measures 2-1/8 x 3-3/4 inches (5.3 x 9.3 cm). WalthersTrack Code 83 Bridge Track Set 948-83004, railroad track, locomotives, rolling stock, signals, boats, scenery, paints, adhesives, and additional accessories are sold separately. Follow the manufacturer's instructions for electrical installation, mechanical adjustment, and safe operation. Do not operate trains across the bridge unless the span is fully closed and properly aligned.

The Walthers Cornerstone HO Scale Operating Single-Track Railroad Bascule Bridge Kit 933-3070 provides an impressive operating structure for HO scale railroad layouts featuring rivers, canals, harbors, and industrial waterways. With its motorized lifting span, detailed steel framework, massive counterweight, bridge tender's shanty, and included interlocking tower, this kit helps create realistic railroad crossings where train movements and marine traffic meet.
