Walthers Cornerstone HO Scale 90' Turntable Kit - 933-3171

Walthers Cornerstone HO Scale 90' Turntable Kit 933-3171 brings a classic locomotive turning facility to HO scale model railroad layouts. Based on turntables used at smaller steam locomotive terminals, this detailed kit allows modelers to recreate the essential railroad operation of turning locomotives and directing them between engine servicing tracks, storage tracks, and roundhouse facilities.

The turntable features a 13-3/16-inch (33 cm) diameter pit and a detailed bridge designed to accommodate locomotives up to 12-3/8 inches (30.9 cm) long. The one-piece pit is designed for drop-in installation, while the assembled bridge can be positioned manually to align with the desired tracks.

Included details such as the operator's cab, bridge handrails, traditional overhead arch, gear drive, and realistic decals help recreate the appearance of a traditional railroad turntable. The kit is supplied without a motor but can be upgraded using the separately available Walthers Turntable Motorizing Kit 933-1050.

Explore HO Scale Walthers Cornerstone structures and the complete Walthers Cornerstone collection for additional model railroad buildings, locomotive servicing structures, and railroad infrastructure.

Build a Realistic HO Scale Steam Locomotive Turntable

Turntables played an important role in steam locomotive operations. Many steam locomotives were designed to operate most effectively in a forward direction, making facilities for turning engines an important part of railroad terminal planning.

A turntable allowed railroad crews to rotate a locomotive and align it with different tracks without requiring a large turning loop. This made turntables particularly useful at engine terminals, roundhouses, and locations where available railroad property was limited.

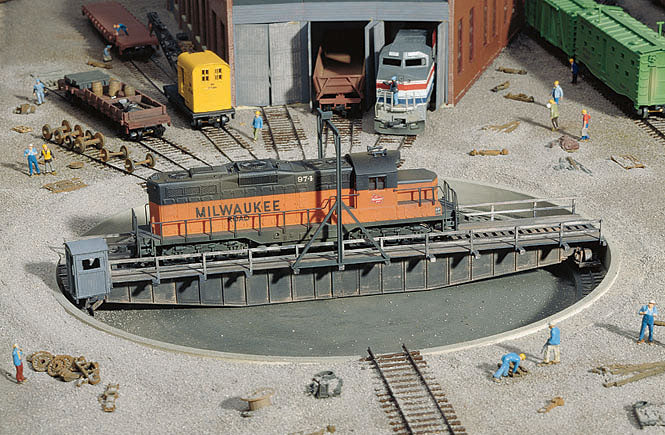

The Walthers Cornerstone 90' Turntable recreates this familiar railroad feature in a size appropriate for many HO scale layouts. Its design is based on equipment used at smaller steam locomotive servicing facilities, making it suitable for branch-line terminals, division-point engine facilities, and compact roundhouse districts.

The detailed bridge spans the circular pit and can be aligned with connecting tracks. This creates the appearance of a working locomotive turning facility and gives modelers an additional railroad operation to incorporate into their layouts.

The operator's cab and handrails provide recognizable structural details, while the traditional overhead arch represents the type of equipment used to supply electrical power to prototype turntable drive motors.

For a steam-era layout, the turntable can become the centerpiece of an engine terminal where locomotives are turned, serviced, and assigned to their next trains.

Browse Walthers Cornerstone engine and maintenance facilities for additional structures that can complement the turntable.

90' Turntable Kit Features and Dimensions

The Walthers Cornerstone HO Scale 90' Turntable Kit includes the following manufacturer-confirmed features:

• 90-foot prototype-style turntable: Based on turntables used at smaller steam locomotive terminals.
• One-piece circular pit: Designed for drop-in mounting on a model railroad layout.
• Detailed turntable bridge: Manually positionable after assembly.
• Operator's cab: Adds a recognizable control structure to the bridge.
• Bridge handrails: Provide additional prototype-style detail.
• Traditional overhead arch: Represents the electrical supply arrangement used on prototype turntables.
• Gear drive: Included as part of the turntable mechanism.
• Realistic decals: Provide finishing details for the assembled model.
• Optional motorization: Compatible with Walthers Motorizing Kit 933-1050, sold separately.
• Complete instructions: Include information about assembly, track installation, wiring, and motorization.

Turntable pit diameter: 13-3/16 inches (33 cm).

Maximum locomotive length specified by Walthers: 12-3/8 inches (30.9 cm).

Scale: HO Scale, 1:87.

Operation: Manually positionable bridge; optional motorization available separately.

Manufacturer item number: 933-3171.

The maximum locomotive length is a useful planning specification, but modelers should check the actual dimensions, wheelbase, and overhang of their locomotives before selecting equipment for the turntable. Additional clearance may be required around the bridge and approach tracks.

Ideal for Small Steam Locomotive Engine Terminals

The 90' Turntable is particularly well suited for smaller steam locomotive terminals. Not every railroad maintained an extensive roundhouse complex, and many locations used relatively compact turning facilities to handle local freight and passenger locomotives.

For a branch-line railroad, the turntable can provide a practical location for turning a steam locomotive at the end of its route. After arriving with a local freight or passenger train, the locomotive can move onto the bridge, be turned, and return to service facing the desired direction.

For a division-point terminal, the turntable can connect an arrival track with several engine servicing and storage tracks. This arrangement allows modelers to represent the movement of locomotives between different terminal facilities.

The turntable can also serve a small roundhouse or engine house. By arranging tracks around part of the pit, modelers can create the appearance of a railroad maintenance district without requiring a large number of stalls.

For a compact layout, the turntable can be positioned near the rear or corner of the railroad, with a few connecting tracks leading to locomotive storage and servicing structures.

The circular pit and bridge provide a distinctive visual feature that helps establish the purpose of the surrounding railroad property.

Explore Walthers Cornerstone railroad structures for additional railroad buildings that can help develop a complete engine terminal.

Create Realistic Locomotive Turning and Servicing Operations

A turntable adds an important operating function to an HO scale railroad. Rather than simply moving locomotives between tracks, modelers can recreate the process of turning engines and assigning them to different servicing locations.

For a steam-era railroad, an arriving locomotive can move from the main line into the engine terminal. The turntable can then be positioned to direct the engine toward a roundhouse, coaling facility, water tank, or servicing track.

After receiving the required attention, the locomotive can return to the turntable and be aligned with a departure track. This creates a realistic sequence of movements that can be incorporated into operating sessions.

For a smaller railroad, the turntable can serve as the primary connection between an engine house and the main line. Even a simple arrangement with two or three connecting tracks can provide interesting locomotive movements.

For a larger terminal, the turntable can become part of a complex railroad facility containing multiple servicing tracks and maintenance structures.

The manually positionable bridge allows modelers to align the turntable with different tracks. For those who prefer powered operation, Walthers identifies Motorizing Kit 933-1050 as the compatible optional upgrade.

Because this is a kit rather than an assembled powered turntable, modelers should plan the desired operating arrangement before installation and follow the supplied instructions for assembly, track connections, and wiring.

Combine the Turntable with a Roundhouse or Engine House

Roundhouses and turntables are among the most recognizable combinations in steam locomotive terminal scenery. A turntable provides access to individual storage and maintenance tracks, while the roundhouse offers protected space for locomotives and mechanical work.

The Walthers Cornerstone 90' Turntable can be used as the centerpiece of a compact roundhouse scene. Tracks radiating from the turntable can lead toward the engine storage and maintenance facilities selected for the layout.

The Walthers Cornerstone HO Scale Three-Stall Roundhouse Kit 933-3041, sold separately, is one possible companion for a steam-era engine terminal. Modelers should verify the track geometry and required spacing when combining separately purchased structures.

For a smaller railroad, a single engine house can provide locomotive storage without requiring a complete roundhouse complex.

Additional tracks can represent locomotive arrival and departure routes, ready tracks, and service areas. This arrangement helps create a terminal with a clear operational purpose.

Browse Walthers Cornerstone engine and maintenance facilities for roundhouses, engine houses, and other structures that can complement the turntable.

Develop a Complete Steam Locomotive Servicing District

Steam locomotive terminals required more than a place to turn engines. Locomotives also needed water, fuel, sand, ash removal, and regular mechanical attention before returning to service.

The 90' Turntable can serve as the central feature of a servicing district containing several specialized structures. Each facility represents a different part of the work performed by a railroad's mechanical department.

The Walthers Cornerstone HO Scale Sanding Towers & Drying House Kit 933-3182, sold separately, can provide a location for preparing and distributing locomotive sand.

The Walthers Cornerstone HO Scale Cinder Conveyor & Ash Pit Kit 933-3181, sold separately, can represent the removal and handling of ashes and cinders from coal-burning steam locomotives.

Coaling facilities and water tanks can provide additional steam-era servicing functions. Positioning these structures near the turntable helps create a believable sequence of locomotive movements through the terminal.

For a busy railroad, the engine terminal can also include maintenance shops, storage tracks, and railroad operations buildings.

For a compact branch-line terminal, a turntable, small engine house, and a few supporting facilities may provide enough detail to establish a convincing locomotive servicing location.

Explore Walthers Cornerstone trackside structures for additional railroad-side buildings that can complement the engine terminal.

Manually Positionable with Optional Motorization

The Walthers Cornerstone 90' Turntable is supplied as a non-motorized kit. Once assembled, the bridge can be positioned manually to align with the selected connecting tracks.

Manual operation is suitable for modelers who want a traditional locomotive turning facility without installing an additional powered drive system. The turntable can be incorporated into a railroad operating session by positioning the bridge as locomotives move between terminal tracks.

For modelers who prefer motorized operation, Walthers specifies the Motorizing Kit 933-1050 as the compatible upgrade. This optional kit is sold separately and is not included with turntable 933-3171.

The turntable kit includes a gear drive and instructions covering the installation of track, wiring, and other assembly requirements. Modelers should follow the manufacturer's directions carefully to obtain proper bridge alignment and reliable operation.

The overhead arch is a prototype-inspired detail representing the electrical supply arrangement used on full-size turntables. Its inclusion helps establish the appearance of a traditional railroad turning facility.

Before selecting an operating method, consider how frequently the turntable will be used and how it will fit into the layout's locomotive servicing procedures.

Important: This product should not be confused with Walthers assembled and motorized turntable models. Item 933-3171 is an unassembled, non-motorized turntable kit with a manually positionable bridge.

Plan the Turntable Pit and Connecting Tracks

Installing a turntable requires careful planning because the circular pit must be integrated into the railroad's benchwork and track arrangement.

The one-piece pit is designed for drop-in mounting, helping simplify the construction process compared with building a turntable pit from individual wall sections.

With a pit diameter of 13-3/16 inches, modelers should allow enough room for the turntable itself, the surrounding pit edge, connecting tracks, and nearby structures.

Before cutting the layout surface, use the manufacturer's footprint information and instructions to determine the correct opening and installation arrangement.

Approach tracks should be aligned carefully with the bridge. Proper alignment is essential for moving locomotives smoothly between the turntable and the surrounding railroad tracks.

Modelers should also consider the number of tracks needed around the pit. A simple terminal may require only a few connections, while a roundhouse scene may use several radial tracks.

For a larger engine terminal, plan the locations of coaling facilities, water tanks, sanding equipment, and locomotive storage structures before permanently installing the turntable.

Test the intended locomotives on the bridge and check clearances around the operator's cab, handrails, and other structural details. The manufacturer's 12-3/8-inch locomotive length specification should be considered when selecting compatible equipment.

The instructions also cover track installation and electrical connections. Follow these directions when preparing the turntable for operation on the layout.

Customize a Detailed HO Scale Railroad Turntable Scene

The Walthers Cornerstone 90' Turntable provides several opportunities for painting and weathering. The pit walls, bridge structure, operator's cab, and other details can be finished to coordinate with the railroad and the surrounding engine terminal.

Weathering can help recreate the appearance of a turntable that has been in regular railroad service. Subtle rust effects on steel components, darkened areas around the pit, and variations in color can add depth to the completed model.

For a steam-era scene, soot and grime effects can suggest the presence of coal-burning locomotives and frequent engine terminal activity.

The operator's cab and handrails can be painted in contrasting colors to emphasize the details of the bridge.

Nearby scenery can include ballast, service walkways, maintenance buildings, and separately purchased railroad workers. These additions help establish the appearance of an active locomotive servicing facility.

For a roundhouse district, additional lighting and maintenance details can create a more developed railroad scene around the turntable.

Explore Walthers Cornerstone accessories and details for additional modeling options that can complement the completed turntable installation.

Supplies for HO Scale Turntable and Engine Terminal Projects

Modelers assembling and finishing the 90' Turntable Kit can browse model railroad paint for customizing the bridge, operator's cab, pit walls, and structural details. Painting and weathering can help the turntable blend naturally into a steam-era engine terminal or established railroad maintenance district.

For assembly, explore model building glue and adhesives at Fusion Scale Hobbies. Choose an adhesive compatible with the kit's plastic components and follow the manufacturer's instructions. Keep adhesives away from moving parts and other areas that must remain free for proper operation.

Important: This product is an unassembled, non-motorized HO scale turntable kit. It includes the one-piece pit, detailed bridge with operator's cab and handrails, traditional overhead arch, gear drive, decals, and assembly instructions. The bridge is manually positionable. Walthers Motorizing Kit 933-1050 is required for the manufacturer's optional motorized configuration and is sold separately. Locomotives, railroad track, roundhouses, engine houses, figures, and additional scenery materials are not included. Installation requires planning for the pit opening, track alignment, and electrical connections.

The Walthers Cornerstone HO Scale 90' Turntable Kit 933-3171 provides a classic railroad operating feature for building realistic steam locomotive terminals, compact roundhouse districts, branch-line servicing facilities, and detailed locomotive turning operations on HO scale model railroad layouts.
