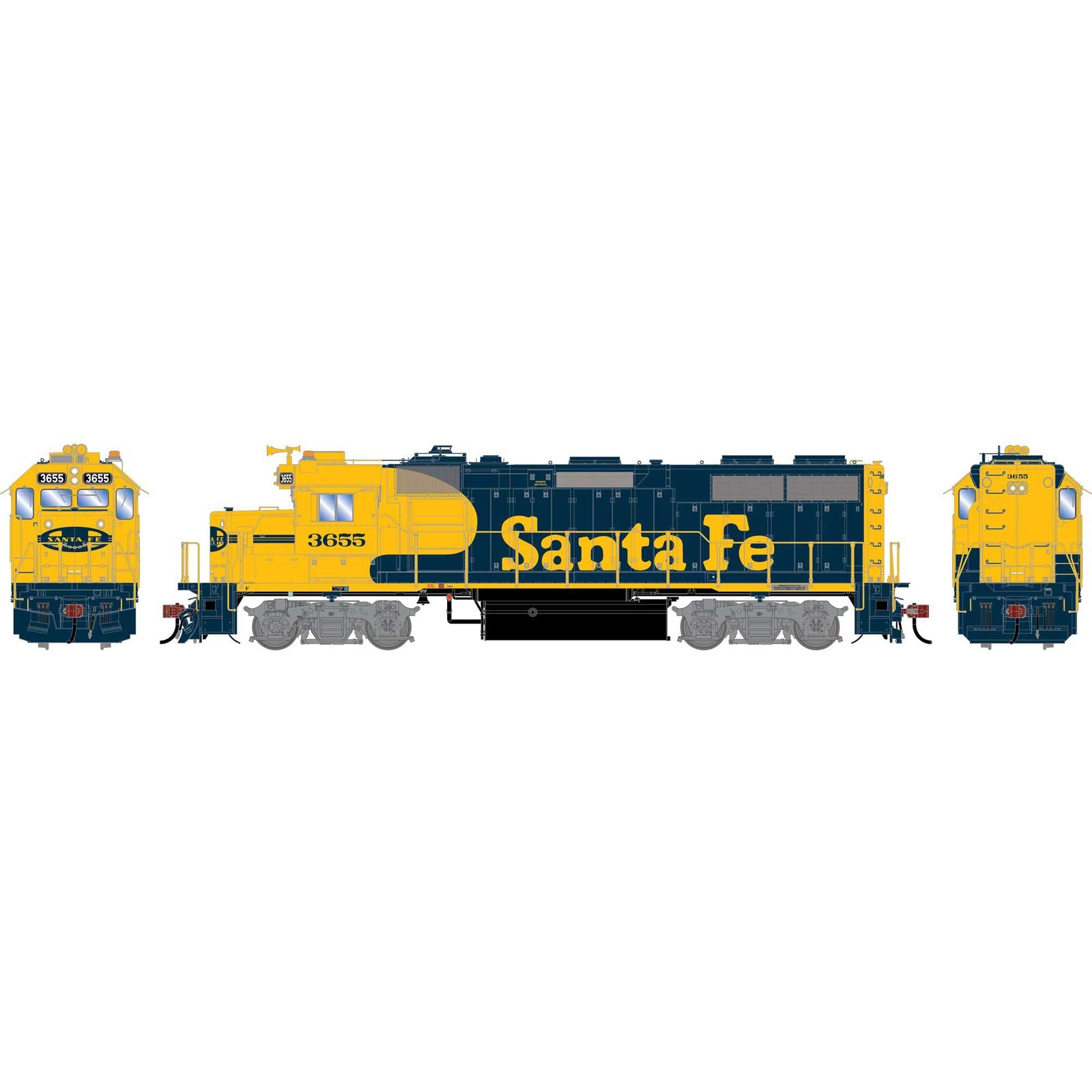

Athearn Genesis HO Scale Santa Fe ATSF #3655 EMD GP39-2 DCC Ready Locomotive

Recreate classic Santa Fe Railway diesel operations with the Athearn Genesis HO Scale ATSF #3655 EMD GP39-2 Phase I locomotive. This highly detailed four-axle road switcher features authentic Santa Fe paint and lettering, prototype-specific equipment, and the dependable mechanical performance of Athearn's premium Genesis locomotive series.

Designed for conventional DC operation with the flexibility to install a digital decoder, ATSF #3655 is DCC Ready with a 21-pin NEM Quick Plug interface. Its early Phase I body, rear-mounted fuel tank, Stratolite cab beacon, and Leslie 3-chime horn make it an excellent choice for model railroaders assembling an accurate Santa Fe diesel locomotive roster.

Explore additional HO scale locomotives for more railroad paint schemes and motive power options.

Santa Fe Railway EMD GP39-2 Locomotive History

Electro-Motive Division introduced the GP39-2 in 1974 as a four-axle diesel-electric road switcher powered by a turbocharged 12-cylinder EMD 645E3 prime mover. Producing 2,300 horsepower, the GP39-2 offered a fuel-efficient alternative to larger diesel locomotives while retaining the versatility needed for freight and switching assignments.

Santa Fe became one of the largest purchasers of the GP39-2. Although originally intended for fast freight service, these locomotives became especially useful on local freight trains and road-switching assignments, where their four-axle configuration and efficient engines provided dependable performance.

Athearn Genesis reproduces Santa Fe ATSF #3655 with the original Phase I body and distinctive railroad-specific equipment, including a rear-mounted fuel tank, large front anticlimber, and switcher-style walkway steps.

Santa Fe ATSF #3655 Road-Specific Features

• Authentic Santa Fe Railway paint and lettering
• Early Phase I EMD GP39-2 locomotive body
• Rear-mounted fuel tank
• Large front anticlimber
• Stratolite cab beacon detail
• Switcher-style walkway steps
• Leslie 3-chime locomotive horn
• Small EMD front plow
• Illuminated locomotive number boards
• Detailed Blomberg trucks
• Prototype-appropriate fuel tank and underbody components

DCC Ready with 21-Pin NEM Decoder Interface

The Athearn Genesis GP39-2 Santa Fe #3655 includes a factory-installed Quick Plug decoder interface with a 21-pin NEM connector for compatible aftermarket DCC decoder installation.

This version operates on conventional DC power as supplied and does not include a factory-installed sound decoder. It is ideal for model railroaders who prefer traditional DC operation or want to select their own DCC decoder for future conversion.

• Factory DCC Ready configuration
• Conventional DC operation out of the box
• 21-pin NEM Quick Plug decoder connector
• Compatible with appropriately selected aftermarket DCC decoders
• Factory-installed LED locomotive lighting
• Illuminated number boards
• No factory-installed sound system

Browse additional HO scale diesel locomotives to compare available DC, DCC Ready, and DCC/Sound models.

Athearn Genesis Drivetrain and Detailed Construction

The Genesis GP39-2 combines precision mechanical engineering with extensive factory-installed detailing for realistic HO scale railroad operations.

A five-pole skew-wound motor, precision-machined flywheels, and multi-link drivetrain help provide smooth locomotive performance, while all-wheel drive and electrical pickup maintain dependable traction and current collection.

A heavy die-cast frame adds weight for pulling freight cars, and RP25 wheel contours provide compatibility with popular HO scale track systems.

• HO scale 1:87 construction
• Five-pole skew-wound motor
• Precision-machined flywheels
• Multi-link all-wheel-drive drivetrain
• All-wheel electrical pickup
• Heavy die-cast chassis
• Factory-installed wire grab irons and lift rings
• Detailed windshield wipers
• Fine-scale Celcon handrails
• Etched metal fan grilles
• See-through cab windows with detailed interior
• Detailed walkway tread and drop steps
• Fuel tank fillers, gauges, and breather pipes
• Trainline hoses, MU hoses, and coupler cut levers
• Detailed Blomberg trucks
• Body-mounted McHenry knuckle couplers compatible with Kadee couplers
• RP25 wheel contours
• Minimum recommended operating radius of 18 inches

Model Santa Fe Local Freight and Switching Operations

Santa Fe's GP39-2 locomotives were well suited for freight assignments requiring versatile four-axle diesel power. Model railroaders can use ATSF #3655 for local freight movements, industrial switching, yard transfers, and multiple-unit locomotive consists.

Its original Phase I configuration makes this model particularly appropriate for layouts depicting Santa Fe operations during the late 1970s, 1980s, and early 1990s.

For model railroaders who prefer a factory-installed sound system, Santa Fe ATSF #3655 is also represented in Athearn's separate DCC/Sound-equipped release. This DCC Ready version provides an alternative for custom decoder installations.

Discover more road numbers and configurations in our Athearn Genesis HO Scale EMD GP39-2 locomotives collection.

Athearn Genesis Santa Fe GP39-2 #3655 Specifications

• Brand: Athearn Genesis
• SKU: ATHG-1965
• Scale: HO Scale (1:87)
• Locomotive Model: EMD GP39-2
• Railroad: Santa Fe Railway
• Reporting Mark: ATSF
• Road Number: 3655
• Body: Early Phase I
• Horn: Leslie 3-Chime
• Beacon: Stratolite Cab Beacon
• Control: DC / DCC Ready
• Decoder Interface: Quick Plug 21-Pin NEM
• Factory Sound: Not Equipped
• Lighting: LED
• Wheel Arrangement: B-B
• Trucks: Blomberg
• Minimum Radius: 18 Inches
