The NixTrainz Decoder Buddy Mini (NTZ2) is a compact 21-pin DCC decoder installation motherboard designed for HO scale locomotives where space is limited but full decoder functionality is still required. It provides a structured wiring platform that replaces traditional hardwired decoder installations with clearly organized connection points for motor, track, lighting, speaker, and stay-alive systems.

This board is widely used in smaller steam and diesel locomotives, including tight-fit applications such as switchers and compact tender or hood installations where standard decoder boards cannot be accommodated.

Explore the full NixTrainz installation ecosystem at the Decoder Buddy Hub, or compare compact and advanced systems such as the Decoder Buddy Mini Collection and the Decoder Buddy V1B Collection for expanded installation requirements.

Compact 21-Pin Decoder Interface System

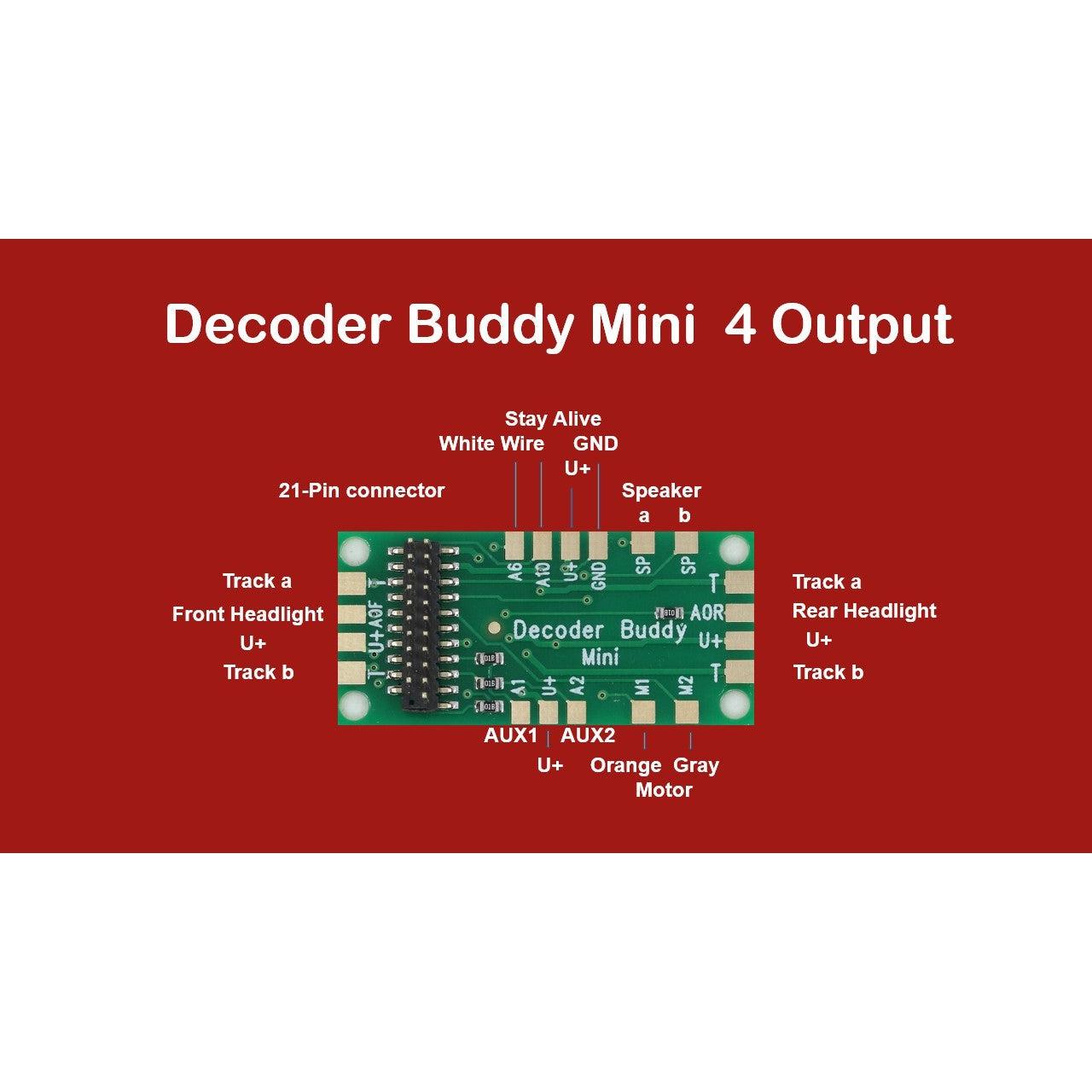

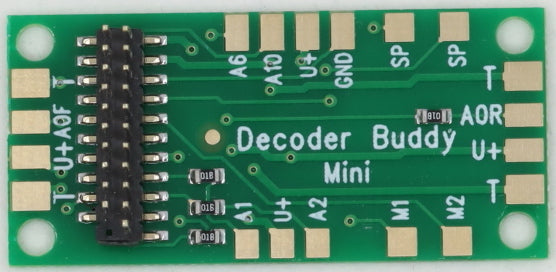

The NTZ2 features a dedicated 21-pin decoder socket along with clearly labeled solder pads for track power, motor outputs, lighting functions, speaker connections, and stay-alive integration. This structured layout reduces wiring errors and simplifies decoder installation compared to direct hardwiring methods.

It is compatible with major 21-pin DCC decoders including ESU, SoundTraxx, Digitrax, TCS, and NCE systems.

Integrated 1K Resistor Lighting Support

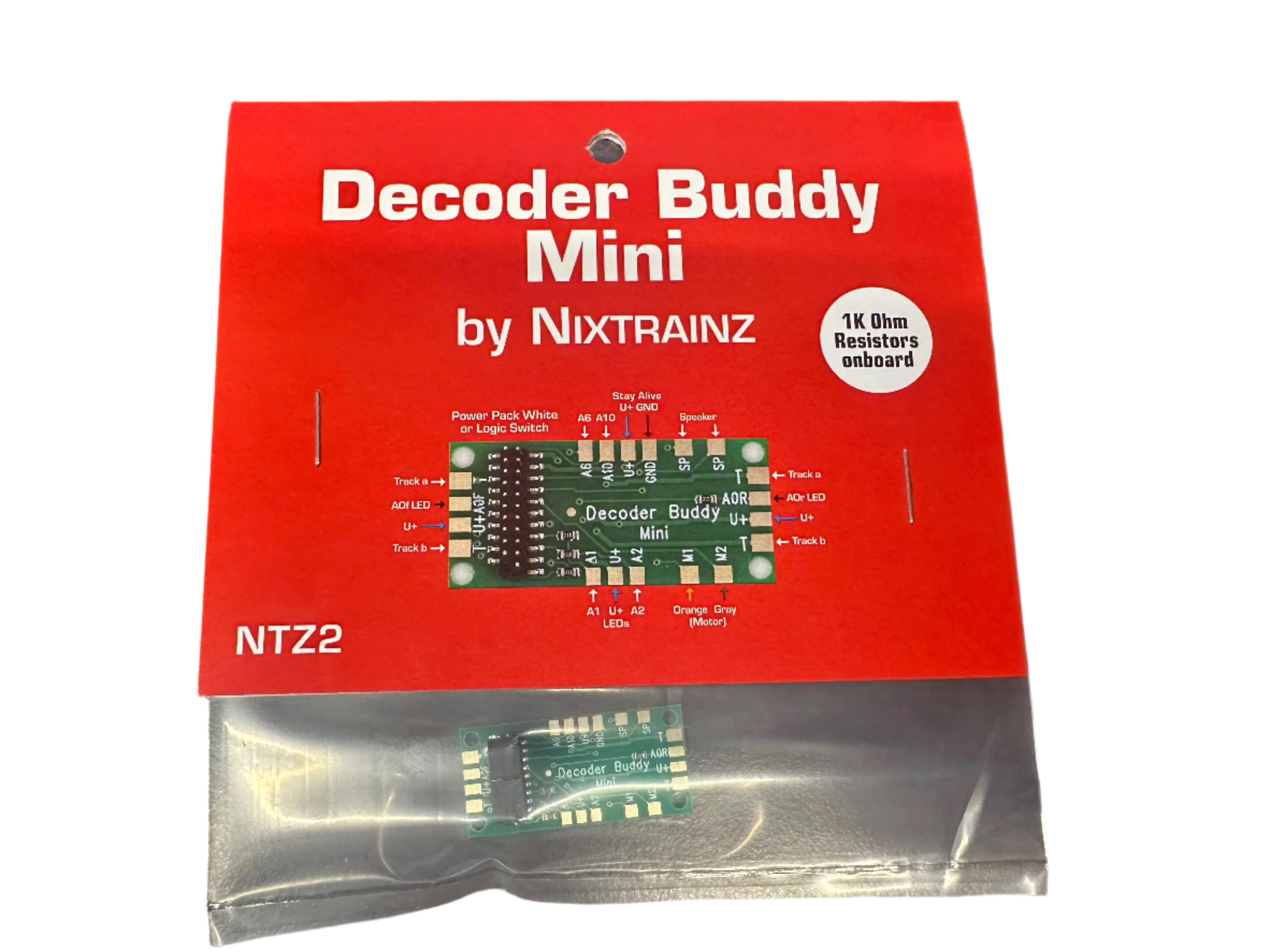

The Decoder Buddy Mini NTZ2 includes onboard 1K resistor configurations for LED lighting applications, helping simplify installation of headlights, rear lights, and auxiliary lighting functions.

These resistors reduce the need for additional inline components in standard LED setups, improving consistency and installation efficiency.

Designed for Tight Locomotive Installations

The NTZ2 is engineered specifically for compact HO scale locomotive shells where internal clearance is limited. It is commonly used in small steam locomotives, switchers, and older diesel models being upgraded to modern DCC control systems.

Its reduced footprint allows full DCC conversion in models that would otherwise require fully hardwired decoder installations.

Stay-Alive and Speaker Support

Despite its compact size, the NTZ2 includes dedicated pads for stay-alive or energy storage systems, allowing integration with capacitor-based modules to improve performance over dirty track and complex layouts.

It also includes speaker connection pads for sound-equipped installations, enabling full DCC audio capability when paired with compatible decoders.

Improved Installation Consistency and Serviceability

By centralizing wiring into a structured motherboard, the NTZ2 improves installation consistency and makes future maintenance or upgrades significantly easier. All major electrical paths are clearly defined, reducing troubleshooting time and simplifying modifications.

This makes it especially useful for modelers converting multiple locomotives or upgrading older fleets to modern DCC standards.

Part of the NixTrainz Installation Ecosystem

The Decoder Buddy Mini NTZ2 is part of a broader ecosystem that includes V1B and V5/V5B boards, Power Bridge stay-alive modules, lighting solutions, and full DCC conversion kits. Together, these components provide a scalable and standardized approach to locomotive electronics upgrades.
