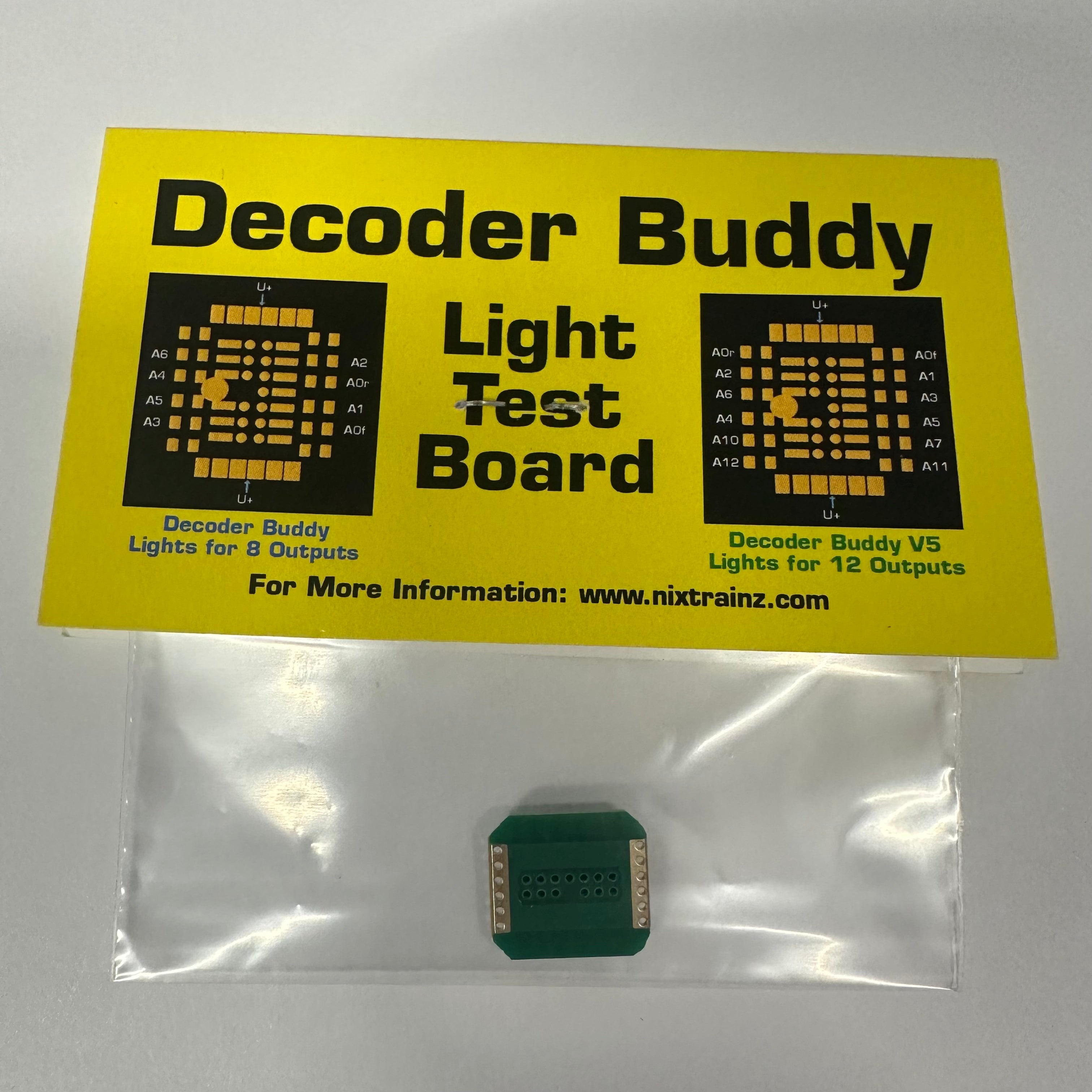

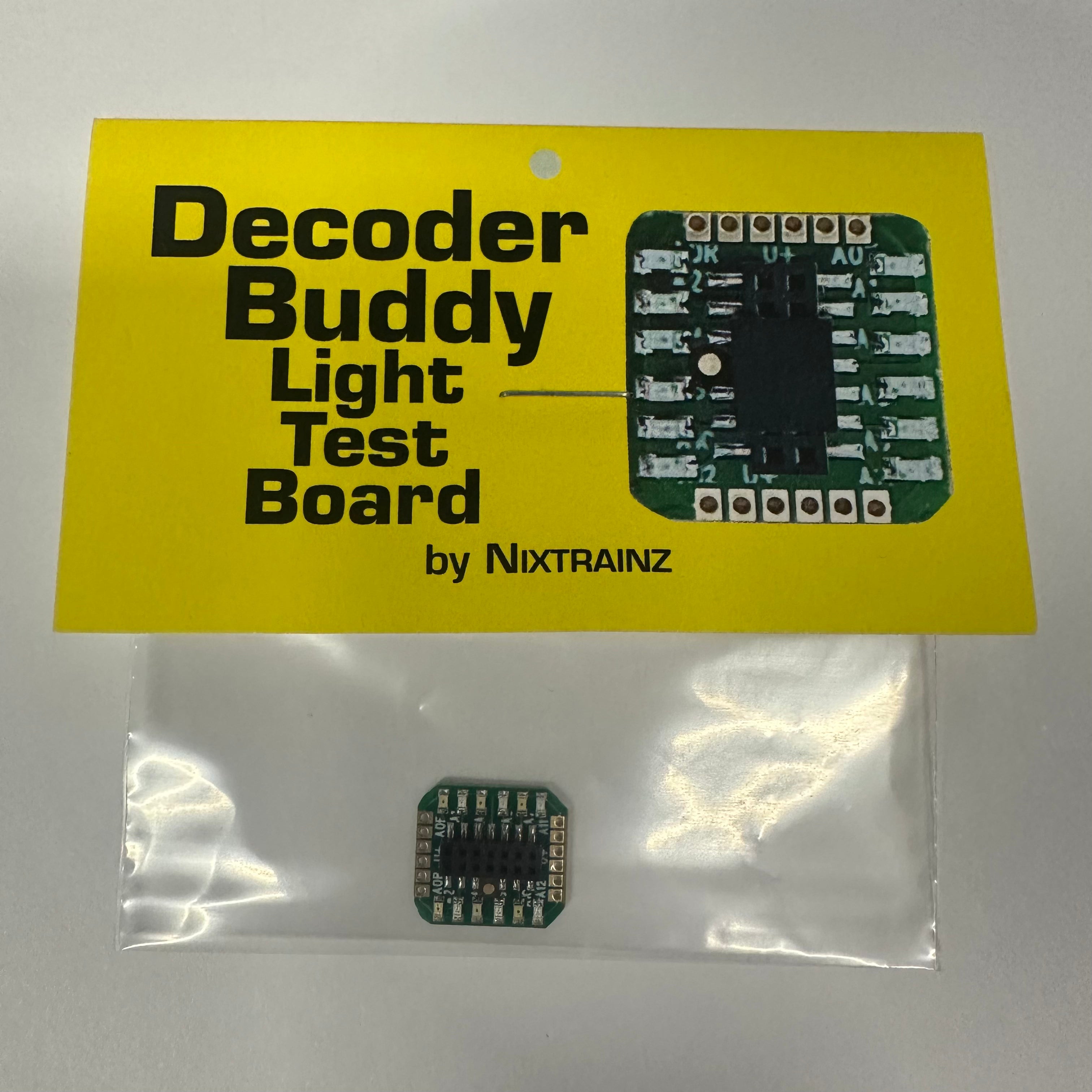

The NixTrainz NTZ7 Decoder Buddy Light Test Board is a diagnostic and testing tool designed for HO scale DCC installations using Decoder Buddy systems. It allows modelers to safely test decoder function outputs, motor response, and lighting circuits before the locomotive shell is fully assembled.

This tool is commonly used during decoder installation and troubleshooting to verify correct wiring and functionality across 8-output Original Decoder Buddy boards as well as 12-output V5 and V5B systems. It helps identify wiring issues early in the installation process, reducing the risk of damaging components during final assembly.

Explore the full NixTrainz installation ecosystem at the Decoder Buddy Hub, or pair this tool with installation platforms such as the Decoder Buddy V1B Collection and Decoder Buddy V5/V5B Collection for complete installation workflows.

Pre-Assembly Decoder Testing Tool

The NTZ7 is designed to simulate locomotive lighting and function outputs in a controlled environment, allowing installers to verify decoder behavior before final assembly. This includes testing headlights, auxiliary lighting, sound functions, and motor response.

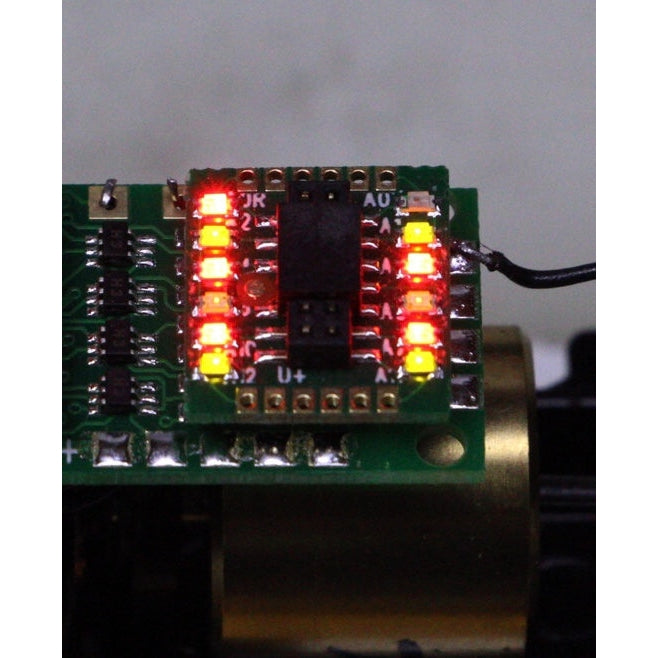

By providing a visual indication of function outputs, the board helps confirm that decoder programming and wiring are correct before the locomotive shell is installed.

Supports 8 and 12 Function Output Systems

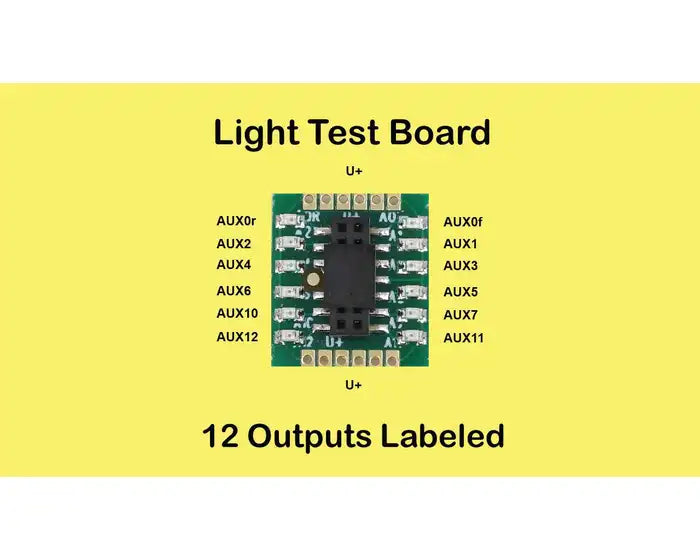

The Light Test Board is compatible with the Original 8-output Decoder Buddy as well as the 12-output V5 and V5B systems. This makes it a versatile diagnostic tool for a wide range of NixTrainz installations.

It provides a standardized way to verify that all lighting channels and auxiliary outputs are functioning as intended across different decoder configurations.

Improved Installation Accuracy and Troubleshooting

By allowing real-time testing of decoder outputs, the NTZ7 reduces installation errors and helps prevent issues that can arise during final locomotive assembly. It is especially useful for identifying incorrect wiring, faulty solder joints, or misconfigured decoder settings.

This improves overall installation reliability and reduces the need for repeated disassembly of locomotives during troubleshooting.

Ideal for Advanced DCC Installers

The NTZ7 is widely used by modelers performing multiple decoder installations or fleet upgrades where consistency and repeatability are important. It streamlines workflow by allowing all function testing to be completed before final locomotive closure.

This makes it a valuable tool for both hobbyists and advanced installers working with complex lighting and sound-equipped DCC systems.

Part of the NixTrainz Installation Ecosystem

The NTZ7 is part of the broader NixTrainz ecosystem, working alongside Decoder Buddy installation boards, Power Bridge stay-alive modules, and DCC conversion kits. Together, these systems provide a structured and efficient approach to locomotive electronics installation and testing.
