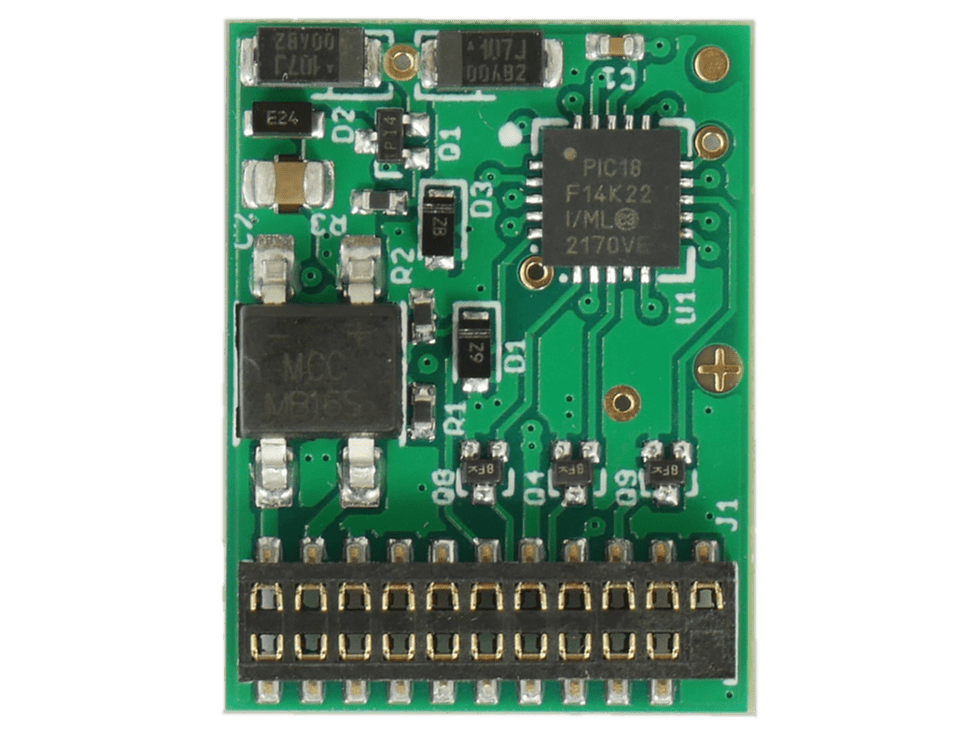

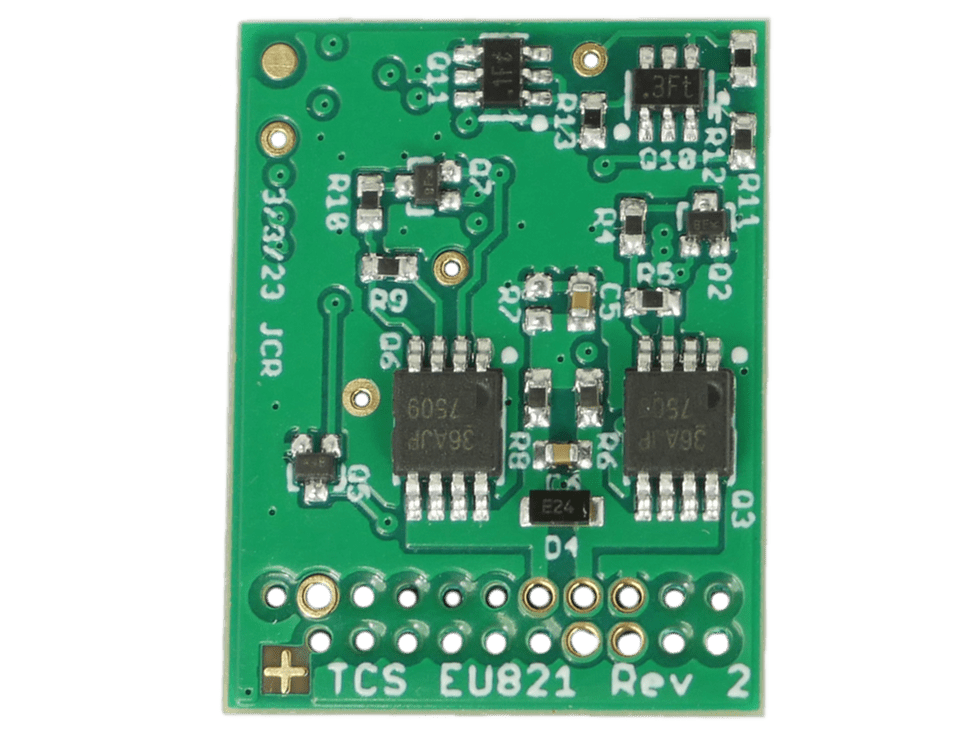

This decoder is designed specifically to meet the needs of European HO-Scale modelers. This decoder is compliant with the NEM660 standard found in locomotives equipped with the MTC 21-pin socket. The EU series decoders are compatible with all of TCS' motherboards, or any locomotive equipped with the MTC 21-pin socket.



  • RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.



  • Back EMF Load Compensation: Provides superior slow speed control and high performance under load.



  • Quiet Drive: Super-quiet motor control for "buzz" free motor performance.



  • DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.



  • Variable Momentum: Allows you to make custom acceleration and deceleration curves.



  • Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.



  • Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.



  • Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!



  • Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.



  • Decoder Lock: Feature which prevents accidental/unwanted programming while activated.



  • Airwire™ Compatible: Fully compatible with Airwire™ operation.



  • User-Loadable Speed Tables: Configure custom speed curves and set speed limits.



Interface Type: Direct-Plug (21-Pin MTC)



Dimensions (L x W x H): 0.797" x 0.613" x 0.197" or 20.24mm x 15.58mm x 5mm



Scale: HO Scale



Continuous/Peak: 1.0/2.0 Amp



Total Functions: 8



Function Rating: 100 mA



12V Outputs: 8
